TC7MA138FK

Features: Low voltage operation: VCC = 1.8~3.6 VHigh speed operation: tpd = 3.5 ns (max) (VCC = 3.0~3.6 V)tpd = 4.1 ns (max) (VCC = 2.3~2.7 V) tpd = 8.2 ns (max) (VCC = 1.8 V) 3.6 V tolerant inputs and outputs. Output current: IOH/IOL = ±24 mA (min) (VCC = 3.0 V) IOH/IOL = ±18 mA (min) (VCC = 2.3 ...

product image

TC7MA138FK Picture
See larger image
SeekIC No. : 004514751 Detail

TC7MA138FK: Features: Low voltage operation: VCC = 1.8~3.6 VHigh speed operation: tpd = 3.5 ns (max) (VCC = 3.0~3.6 V)tpd = 4.1 ns (max) (VCC = 2.3~2.7 V) tpd = 8.2 ns (max) (VCC = 1.8 V) 3.6 V tolerant inputs ...

TC7MA138FK Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TC7MA138FK
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Low voltage operation: VCC = 1.8~3.6 V
 High speed operation: tpd = 3.5 ns (max) (VCC = 3.0~3.6 V)
                                       tpd = 4.1 ns (max) (VCC = 2.3~2.7 V)
                                       tpd = 8.2 ns (max) (VCC = 1.8 V)
3.6 V tolerant inputs and outputs.
Output current: IOH/IOL = ±24 mA (min) (VCC = 3.0 V)
                             IOH/IOL = ±18 mA (min) (VCC = 2.3 V)
                             IOH/IOL = ±6 mA (min) (VCC = 1.8 V)
 Latch-up performance: ±300 mA
 ESD performance: Machine model > ±200 V
                                Human body model > ±2000 V
 Package: VSSOP (US16)
 Power down protection is provided on all inputs and outputs.


Pinout

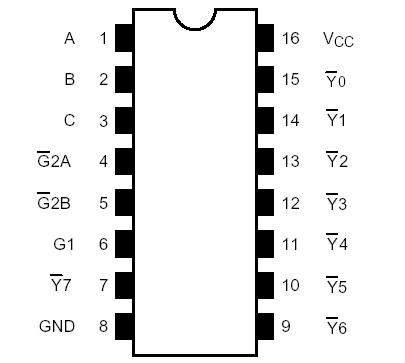

Connection Diagram


Specifications

Characteristics
Symbol
Rating
Unit
Supply voltage range
VCC
−0.5~4.6
V
DC input voltage
VIN
−0.5~4.6
V
DC output voltage
VOUT
-0.5~4.6           (Note1)
V
−0.5~VCC + 0.5   (Note2)
Input diode current
IIK
−50
mA
Output diode current
IOK
±50
mA
DC output current
IOUT
±50                    (Note3)
mA
DC VCC/ground current
ICC/IGND
180
mW
Power dissipation
PD
±100
mA
Storage temperature
Tstg
−65~150
°C



Description

The TC7MA138FK is a high performance CMOS 3-to-8 decoder. Designed for use in 1.8, 2.5 or 3.3 V systems, it achieves high speed operation while maintaining the CMOS low power dissipation.

TC7MA138FK is also designed with over voltage tolerant inputs and outputs up to 3.6 V.

When the TC7MA138FK is enabled, 3 binary select inputs (A, B and C) determine which one of the outputs (Y0 - Y0) will go low.

When enable input G1 is held low or either G2A or G2B is held high, decoding function is inhibited and all outputs go high.

G1, G2A and G2B inputs are provided to ease cascade connection and for use as an address decoder for memory systems.

All inputs of TC7MA138FK are equipped with protection circuits against static discharge.
