TC7MZ273FK

Features: • Low voltage operation: VCC = 2.0 V~3.6 V• High-speed operation: tpd = 8.5 ns (max) (VCC = 3.0 V~3.6 V)• Output current: |IOH|/IOL = 24 mA (min) (VCC = 3.0 V)• Latch-up performance: ±500 mA• Package: VSSOP (US20)• Power-down protection is provided for...

product image

TC7MZ273FK Picture
See larger image
SeekIC No. : 004514841 Detail

TC7MZ273FK: Features: • Low voltage operation: VCC = 2.0 V~3.6 V• High-speed operation: tpd = 8.5 ns (max) (VCC = 3.0 V~3.6 V)• Output current: |IOH|/IOL = 24 mA (min) (VCC = 3.0 V)• Lat...

TC7MZ273FK Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TC7MZ273FK
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low voltage operation: VCC = 2.0 V~3.6 V
• High-speed operation: tpd = 8.5 ns (max) (VCC = 3.0 V~3.6 V)
• Output current: |IOH|/IOL = 24 mA (min) (VCC = 3.0 V)
• Latch-up performance: ±500 mA
• Package: VSSOP (US20)
• Power-down protection is provided for all inputs and outputs.
• Pin and function compatible with the 74 Series (74AC/VHC/HC/F/ALS/LS etc.) 273 type.


Pinout

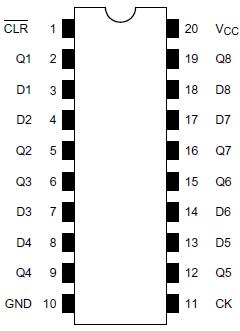

Connection Diagram


Specifications

Characteristics
 Symbol Rating Unit
Supply voltage range VCC −0.5~7.0 V
DC input voltage VIN −0.5~7.0 V
DC output voltage VOUT −0.5~7.0(Note1) V
−0.5~VCC + 0.5 (Note2)
Input diode current IIK −50 mA
Output diode current IOK ±50 (Note3) mA
DC output current IOUT ±50 mA
Power dissipation PD 180 mW
DC VCC/ground current ICC/IGND ±100 mA
Storage temperature Tstg −65~150
Note1: Output in off-state
Note2: High or low state. IOUT absolute maximum rating must be observed.
Note3: VOUT < GND, VOUT > VCC


Description

The TC7MZ273FK is a high-performance CMOS octal D-type flip-flop. Designed for use in 3.3-V systems, it achieves high-speed operation while maintaining CMOS low power dissipation.

The TC7MZ273FK is designed for low-voltage (3.3-V) applications, but can also be used to interface both inputs and outputs with a 5-V supply environment.

D-input signal of TC7MZ273FK is sent to Q-output when clock rises. Clear input is Low-active and all flip-flop outputs are reset Low.All inputs are equipped with protection circuits to guard against static discharge
