Product Details

Description

Features:

• Low voltage operation: V_CC = 2.0~3.6 V
• High speed operation: t_pd = 6.0 ns (max) (V_CC = 3.0~3.6 V)
• Output current: |I_OH|/I_OL = 24 mA (min) (V_CC = 3.0 V)
• Latch-up performance: −500 mA
• Package: VSSOP (US16)
• Power down protection is provided on all inputs and outputs.
• Pin and function compatible with the 74 series (74AC/VHC/HC/F/ALS/LS etc.) 138 type.

Pinout

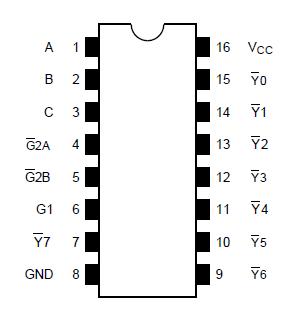

Connection Diagram

Specifications

Characteristics	Symbol	Rating	Unit
Supply voltage range	V_CC	−0.5~7.0	V
DC input voltage	V_IN	−0.5~7.0	V
DC output voltage	V_OUT	−0.5~7.0 (Note 2)	V
DC output voltage	V_OUT	−0.5~VCC + 0.5 (Note 3)	V
Input diode current	I_IK	−50	mA
Output diode current	I_OK	±50 (Note 4)	mA
DC output current	I_OUT	±50	mA
Power dissipation	P_D	180	mW
DC V_CC/ground current	I_CC/I_GND	±100	mA
Storage temperature	T_stg	−65~150	°C
