TC7MTX01FK

Features: Temperature compensation precision: ±4°C (in the range −20~70°C)Analog output (XOcont): Outputs an analog voltage whose level corresponds to 1°C increments in the above temperature range. Control resolution: 10.98 mV (typ.)/Bit Linearity: ±1LSB Output response speed: 500 µsSu...

product image

TC7MTX01FK Picture
See larger image
SeekIC No. : 004514835 Detail

TC7MTX01FK: Features: Temperature compensation precision: ±4°C (in the range −20~70°C)Analog output (XOcont): Outputs an analog voltage whose level corresponds to 1°C increments in the above temperature r...

TC7MTX01FK Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TC7MTX01FK
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Temperature compensation precision: ±4°C (in the range −20~70°C)
 Analog output (XOcont):
   Outputs an analog voltage whose level corresponds to 1°C increments in the above temperature range.
   Control resolution: 10.98 mV (typ.)/Bit
   Linearity: ±1LSB
   Output response speed: 500 µs
 Supply voltage operating range: 2.7~3.3 V
 Built-in E2PROM : Write voltage 17 V (min)~19 V (max)
                            : Write time: 10 ms
 Reference voltage (VRef): 2.8 V (typ.)
 Current dissipation: 1.0 mA (max) @25°C
ESD: ±2000 V or more (MIL-STD method)
 Latch-up: ±200 mA or more

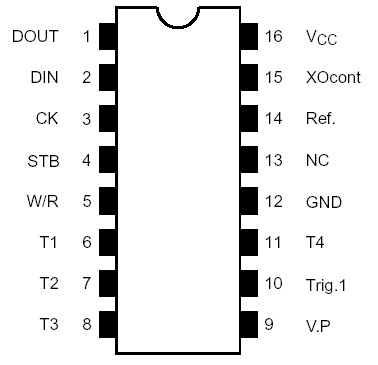

Pinout

Connection Diagram


Specifications

Characteristic
Symbo
Rating
Unit
Pin
Supply voltage
VCC
-0.5~4.6
V
 VCC
E2PROM write voltage
VP
-0.5~20.0
V
 V.P
Reference voltage
VRef
-0.5~VCC + 0.5
V
 Ref.
Input voltage
VIN
-0.5~4.0
V
 DIN, CK, STB, W/R, Trig1
Output voltage
VOUT
-0.5~VCC+ 0.5
V
 DOUT, XOcont
Input current
IIN
±10
mA
 DIN, CK, STB, W/R, Trig1
Power dissipation
PD
180
mW

Storage temperature
Tstg
40~125
°C




Description

Due to the demand for compactness and lower power dissipation, circuits for TC7MTX01FK is being manufactured as individual chips. In particular, during the manufacture of modular devices comprised of several individual discrete TC7MTX01FK, significant time and effort must be devoted to adjusting the temperature characteristic of each discrete device individually, In addition, the demand for low power consumption is increasing.

In response to these requirements, Toshiba have developed the TC7MTX01FX, a digital temperature compensation IC.

Toshiba have implemented this TC7MTX01FK completely in CMOS, obviating the need to use combinations of individual electronic components, such as thermistors and resistors, as was the case previously. The new digital temperature compensation IC incorporates a temperature sensor, an E2PROM and a DA converter. The IC is accurate to within ±4ºC.

To meet the demand for compactness, the TC7MTX01FK comes in the World's smallest and flattest 16-pin package (US16).
