Features:

High speed: fmax = 180 MHz (typ.) (VCC = 5 V)
 Low power dissipation: ICC = 4 µA (max) (Ta = 25°C)
 High noise immunity: VNIH = VNIL = 28% VCC (min)
Power down protection is provided on all inputs.
Balanced propagation delays: tpLH tpHL
Wide operating voltage range: VCC (opr) = 2~5.5 V
 Low noise: VOLP = 1.0 V (max)
 Pin and function compatible with 74ALS574



Pinout

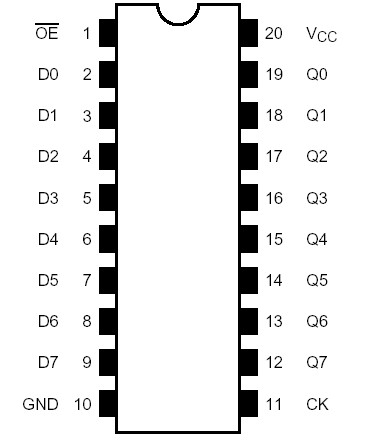

  Connection Diagram


Specifications

Characteristics
Symbol
Rating
Unit
Supply voltage range
VCC
−0.5~7.0
V
DC input voltage
VIN
−0.5~7.0
V
DC output voltage
VOUT
−0.5~VCC + 0.5
V
Input diode current
IIK
−20
mA
Output diode current
IOK
±20
mA
DC output current
IOUT
±25
mA
DC VCC/ground current
ICC
±75
mA
Power dissipation
PD
180
mW
Storage temperature
Tstg
−65~150
°C



Description

The TC7MH574FK is an advanced high speed CMOS octal flip-flop with 3-state output fabricated with silicon gate C2MOS technology.

TC7MH574FK achieves the high speed operation similar to equivalent bipolar schottky TTL while maintaining the CMOS low power dissipation.

This 8 bit D-type flip-flop of TC7MH574FK is controlled by a clock input (CK) and an output enable input (OE).

When the OE input is high, the eight outputs are in a high impedance state.

An input protection circuit ensures that 0 to 7 V can be applied to the input pins without regard to the supply voltage. The TC7MH574FK can be used to interface 5 V to 3 V systems and two supply systems such as battery back up. This circuit prevents device destruction due to mismatched supply and input voltages.
