TC7MH373FK

Features: • High speed: tpd = 5.0 ns (typ.) (VCC = 5 V)• Low power dissipation: ICC = 4 A (max) (Ta = 25)• High noise immunity: VNIH = VNIL = 28% VCC (min)• Power down protection is provided on all inputs.• Balanced propagation delays: tpLH −∼ tpHL• ...

product image

TC7MH373FK Picture
See larger image
SeekIC No. : 004514813 Detail

TC7MH373FK: Features: • High speed: tpd = 5.0 ns (typ.) (VCC = 5 V)• Low power dissipation: ICC = 4 A (max) (Ta = 25)• High noise immunity: VNIH = VNIL = 28% VCC (min)• Power down protec...

TC7MH373FK Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TC7MH373FK
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High speed: tpd = 5.0 ns (typ.) (VCC = 5 V)
• Low power dissipation: ICC = 4 A (max) (Ta = 25)
• High noise immunity: VNIH = VNIL = 28% VCC (min)
• Power down protection is provided on all inputs.
• Balanced propagation delays: tpLH −∼ tpHL
• Wide operating voltage range: VCC (opr) = 2~5.5 V
• Low noise: VOLP = 0.8 (max)
• Pin and function compatible with 74ALS373


Pinout

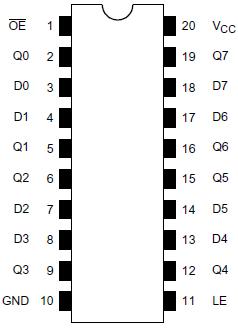

Connection Diagram


Specifications

Characteristics
Symbol
Rating
Unit
Supply voltage range
VCC
−0.5~7.0
V
DC input voltage
VIN
−0.5~7.0
V
DC output voltage
VOUT
−0.5~VCC + 0.5
V
Input diode current
IIK
-20
mA
Output diode current
IOK
±20
mA
DC output current
IOUT
±25
mA
DC VCC/ground current
ICC
±75
mA
Power dissipation
PD
180
mW
Storage temperature
Tstg
−65~150



Description

The TC7MH373FK is an advanced high speed CMOS octallatch with 3-state output fabricated with silicon gate C2MOS technology.

TC7MH373FK achieves the high speed operation similar to equivalent bipolar schottky TTL while marinating the CMOS low power
dissipation.

This 8 bit D-type latch is controlled by a latch enable input (LE) and a output enable input (OE ).When the OE input is high, the eight outputs are in a high impedance state.

An input protection circuit of TC7MH373FK ensures the 0 to 7 V can be applied to the input pins can be used to interface 5 V to 3 V systems and two supply systems such as battery back up.This circuit prevents destruction due to mismatched supply and input voltages.
