Product Details

Description



Features:

• High speed: tpd = 3.8 ns (typ.) (VCC = 5 V)
• Low power dissipation: ICC = 4 µA (max) (Ta = 25°C)
• High noise immunity: VNIH = VNIL = 28% VCC (min)
• Power down protection is provided on all inputs.
• Balanced propagation delays: tpLH tpHL
• Wide operating voltage range: VCC (opr) = 2~5.5 V
• Low noise: VOLP = 0.8 V (max)
• Pin and function compatible with 74ALS367/368


Pinout

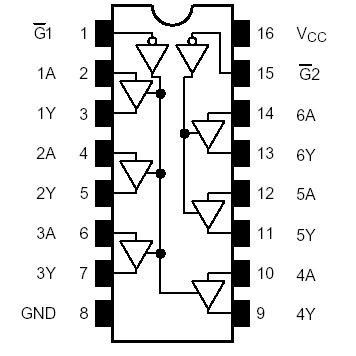

Connection Diagram


Specifications

Characteristics
Symbol
Rating
Unit
Supply voltage range
VCC
−0.5~7.0
V
DC input voltage
VIN
−0.5~7.0
V
DC output voltage
VOUT
−0.5~VCC + 0.5
V
Input diode current
IIK
−20
mA
Output diode current
IOK
±20
mA
DC output current
IOUT
±25
mA
DC VCC/ground current
ICC
±50
mA
Power dissipation
PD
180
mW
Storage temperature
Tstg
−65~150
°C



Description

The TC7MH367FK and TC7MH368FK are advanced high speed CMOS HEX bus buffers fabricated with silicon gate C2MOS technology.

The TC7MH368FK achieve the high speed operation similar to equivalent bipolar schottky TTL while maintaining the CMOS low power dissipation.

They contain six buffers; four buffers are controlled by an enable input (G1), and the other two buffers are controlled by another enable input (G2). The outputs of each buffer group are enabled when G1 and/or G2 inputs are held low; if held high, these outputs are in a high impedance state.

The TC7MH367FK is a non-inverting output type, while the TC7MH368FK is an inverting output type.

An input protection circuit ensures that 0 to 7 V can be applied to the input pins without regard to the supply voltage. The TC7MH368FK can be used to interface 5 V to 3 V systems and two supply systems such as battery back up.

This circuit prevents TC7MH368FK destruction due to mismatched supply and input voltages.
