Features:

• High speed: t_pd = 4.0 ns (typ.) (V_CC = 5 V)
• Low power dissipation: I_CC = 4 µA (max) (Ta = 25°C)
• High noise immunity: V_NIH = V_NIL = 28% V_CC (min)
• Balanced propagation delays: t_pLH t_pHL
• Wide operating voltage range: V_{CC (opr)} = 2~5.5 V
• Low noise: V_OLP = 1.0 V (max)
• Pin and function compatible with 74ALS245

Pinout

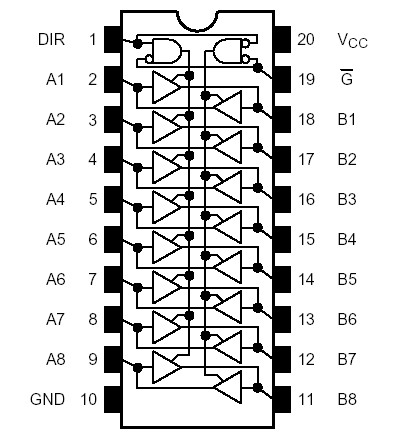

Connection Diagram

Specifications

Characteristics	Symbol	Rating	Unit
Supply voltage range	V_CC	−0.5~7.0	V
DC input voltage	V_IN	−0.5~7.0	V
DC output voltage	V_OUT	−0.5~V_CC + 0.5	V
Input diode current	I_IK	−20	mA
Output diode current	I_OK	±20	mA
DC output current	I_OUT	±25	mA
DC V_CC/ground current	I_CC	±75	mA
Power dissipation	P_D	180	mW
Storage temperature	T_stg	−65~150	°C

Description

The TC7MH245FK is an advanced high speed CMOS octal bus transceiver fabricated with silicon gate C²MOS technology.

TC7MH245FK achieves the high speed operation similar to equivalent bipolar schottky TTL while maintaining the CMOS low power dissipation.

TC7MH245FK is intended for two-way asynchronous communication between data busses. The direction of data transmission is determined by the level of the DIR input.

The enable input (G) can be used to disable the device so that the busses are effectively isolated.

All inputs of TC7MH245FK are equipped with protection circuits against static discharge.
