TC7MH240FK

Features: • High speed: tpd = 3.9 ns (typ.) (VCC = 5 V)• Low power dissipation: ICC = 4 A (max) (Ta = 25)• High noise immunity: VNIH = VNIL = 28% VCC (min)• Power down protection is provided on all inputs.• Balanced propagation delays: tpLH −∼ tpHL• ...

product image

TC7MH240FK Picture
See larger image
SeekIC No. : 004514806 Detail

TC7MH240FK: Features: • High speed: tpd = 3.9 ns (typ.) (VCC = 5 V)• Low power dissipation: ICC = 4 A (max) (Ta = 25)• High noise immunity: VNIH = VNIL = 28% VCC (min)• Power down protec...

TC7MH240FK Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TC7MH240FK
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High speed: tpd = 3.9 ns (typ.) (VCC = 5 V)
• Low power dissipation: ICC = 4 A (max) (Ta = 25)
• High noise immunity: VNIH = VNIL = 28% VCC (min)
• Power down protection is provided on all inputs.
• Balanced propagation delays: tpLH −∼ tpHL
• Wide operating voltage range: VCC (opr) = 2~5.5 V
• Low noise: VOLP = 0.8 (max)
• Pin and function compatible with 74ALS240/244


Pinout

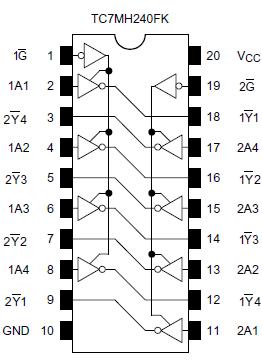

Connection Diagram


Specifications

Characteristics
Symbol
Rating
Unit
Supply voltage range
VCC
−0.5~7.0
V
DC input voltage
VIN
−0.5~7.0
V
DC output voltage
VOUT
−0.5~VCC + 0.5
V
Input diode current
IIK
-20
mA
Output diode current
IOK
±20
mA
DC output current
IOUT
±25
mA
DC VCC/ground current
ICC
±75
mA
Power dissipation
PD
180
mW
Storage temperature
Tstg
−65~150



Description

The TC7MH240FK and TC7MH244FK are advanced high speed CMOS octal bus buffers fabricated with silicon gate C2MOS technology.

The TC7MH240FK  achieve the high speed operation similar to equivalent bipolar schottky TTL while maintaining the CMOS low power dissipation.

The TC7MH240FK is an inverting 3-state buffer having two active-low output enables. The TC7MH244FK is a non-inverting 3-state buffer, and has two active-low output enables.

The TC7MH240FK is designed to be used with 3-state memory address drivers, etc.An input protection circuit ensures that 0 to 7 V can be applied to the input pins without regard to the supply voltage. This device can be used to interface 5 V to 3 V systems and two supply systems such as battery back up.This circuit prevents device destruction due to mismatched supply and input voltages.
