TC7MH157FK

Features: • High speed: tpd = 4.1 ns (typ.) (VCC = 5 V)• Low power dissipation: ICC = 4 A (max) (Ta = 25°C)• High noise immunity: VNIH = VNIL = 28% VCC (min)• Power down protection is provided on all inputs.• Balanced propagation delays: tpLH tpHL• Wide operati...

product image

TC7MH157FK Picture
See larger image
SeekIC No. : 004514799 Detail

TC7MH157FK: Features: • High speed: tpd = 4.1 ns (typ.) (VCC = 5 V)• Low power dissipation: ICC = 4 A (max) (Ta = 25°C)• High noise immunity: VNIH = VNIL = 28% VCC (min)• Power down prot...

TC7MH157FK Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TC7MH157FK
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High speed: tpd = 4.1 ns (typ.) (VCC = 5 V)
• Low power dissipation: ICC = 4 A (max) (Ta = 25°C)
• High noise immunity: VNIH = VNIL = 28% VCC (min)
• Power down protection is provided on all inputs.
• Balanced propagation delays: tpLH tpHL
• Wide operating voltage range: V CC (opr) = 2~5.5 V
• Low noise: VOLP = 0.8 V (max)
• Pin and function compatible with 74ALS157


Pinout

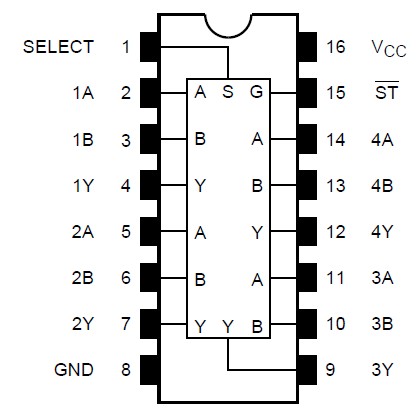

Connection Diagram


Specifications

Characteristics
Symbol
Rating
Unit
Supply voltage range
VCC
−0.5~7.0
V
DC input voltage
VIN
−0.5~7.0
V
DC output voltage
VOUT
−0.5~VCC + 0.5
V
Input diode current
IIK
−20
mA
Output diode current
IOK
±20
mA
DC output current
IOUT
±25
mA
DC Vcc/ground current
ICC
±50
mA
Power dissipation
PD
180
mW
Storage temperature
Tstg
−65~150
Note: Exceeding any of the absolute maximum ratings, even briefly, lead to deterioration in IC performance or even destruction.

Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings and the operating ranges.

Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook ("Handling Precautions"/"Derating Concept and Methods") and individual reliability data (i.e. reliability test report and estimated failure rate, etc).
