TC7MET541AFK

Features: High speed: tpd= 5.4 ns (typ.) (VCC= 5 V) Low power dissipation: ICC= 4 µA (max) (Ta = 25°C) Compatible with TTL outputs: VIL= 0.8 V (max)VIH= 2.0 V (min) Power down protection is provided on all inputs and outputs. Balanced propagation delays: tpLHtpHLLow noise: VOLP= 1.5 V (max) ...

product image

TC7MET541AFK Picture
See larger image
SeekIC No. : 004514793 Detail

TC7MET541AFK: Features: High speed: tpd= 5.4 ns (typ.) (VCC= 5 V) Low power dissipation: ICC= 4 µA (max) (Ta = 25°C) Compatible with TTL outputs: VIL= 0.8 V (max)VIH= 2.0 V (min) Power down protection is pr...

TC7MET541AFK Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TC7MET541AFK
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

High speed: tpd = 5.4 ns (typ.) (VCC = 5 V)
Low power dissipation: ICC = 4 µA (max) (Ta = 25°C)
Compatible with TTL outputs: VIL = 0.8 V (max)
                                               VIH = 2.0 V (min)
Power down protection is provided on all inputs and outputs.
Balanced propagation delays: tpLH tpHL
Low noise: VOLP = 1.5 V (max)
Pin and function compatible with the 74 series (74AC/HC/F/ALS/LS etc.) 540/541 type.


Pinout

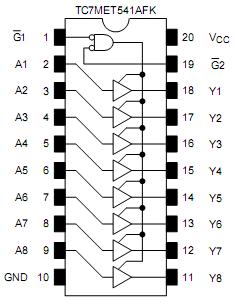

Connection Diagram




Specifications

Characteristics Symbol Rating Unit
Supply voltage range VCC -0.5~7.0 V
DC input voltage VIN -0.5~7.0 V
DC output voltage VOUT -0.5~7.0 (Note1) V
-0.5~VCC+ 0.5 (Note2)

Input diode current IIK -20 mA
Output diode current IOK ±20 (Note3)mA mA
DC output current IOUT ±25 mA
DC VCC/ground current ICC ±75 mA
Power dissipation PD 180 mA
Storage temperature Tstg -65~150 °C



Description

The TC7MET540AFK and TC7MET541AFK are advanced high speed CMOS octal bus buffers fabricated with silicon gate C2MOS technology. They achieve the high speed operation similar to  equivalent bipolar schottky TTL while maintaining the CMOS low power dissipation.


The TC7MET540AFK is an inverting type and, the TC7MET541AFK is a non-inverting type.


When either G1 or G2 are high , the terminal outputs are in the high-impedance state.


The input voltage of TC7MET541AFK are compatible with TTL output voltage.

The TC7MET541AFK may be used as a level converter for interfacing 3.3 V to 5 V system.

Input protection and output circuit ensure that 0 to 5.5 V can be applied to the input and output (*) pins without regard to the supply voltage. These structure prevents TC7MET541AFK destruction due to mismatched supply and input/output voltages such as battery back up, hot board insertion, etc.
