TC7MBD3245AFK

Features: * erating voltage: VCC = 4.5~5.5 V* igh speed: tpd = 0.32 ns (max)* Low on resistance: RON = 5 Ω (typ.)* ESD performance: Human body model > ±2000 V ine model > ±200 V* ompatible with TTL outputs (control inputs)* ow Power Dissipation: Icc = 10 A (max.)* ackage: VSSOP (US20)...

product image

TC7MBD3245AFK Picture
See larger image
SeekIC No. : 004514774 Detail

TC7MBD3245AFK: Features: * erating voltage: VCC = 4.5~5.5 V* igh speed: tpd = 0.32 ns (max)* Low on resistance: RON = 5 Ω (typ.)* ESD performance: Human body model > ±2000 V ine model > ±200 V* ompatib...

TC7MBD3245AFK Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TC7MBD3245AFK
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* erating voltage: VCC = 4.5~5.5 V
* igh speed: tpd = 0.32 ns (max)
* Low on resistance: RON = 5 Ω (typ.)
* ESD performance: Human body model > ±2000 V
                                ine model > ±200 V
* ompatible with TTL outputs (control inputs)
* ow Power Dissipation: Icc = 10 A (max.)
* ackage: VSSOP (US20)
* in compatible with the 74xx245 type.
* unctionally equivalent to (FST/CBT) 3245.


Pinout

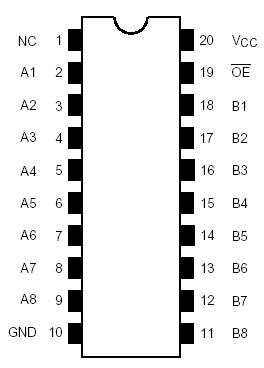

Connection Diagram


Specifications

Characteristics Symbol Rating Unit
Power supply range VCC -0.5~7.0 V
DC input voltage VIN -0.5~7.0 V
DC switch voltage VS -0.5~7.0 V
Input diode current IIK -50 mA
Continuous channel circuit IS 128 mA
Power dissipation PD 180 mW
DC VCC/ground current ICC/IGND -100 mA
Storage temperature Tstg -65~150



Description

The TC7MBD3245AFK provides eight bits of high-speed TL-compatible bus switching in a standard '245 device pinout. he low on-state resistance of the switch allows connections to be ade with minimal propagation delay.

The TC7MBD3245AFK is organized as one 8-bit switch. When output nable (OE) is low, the switch is on and port A is connected to port . When OE is high, the switch is open and a high-impedance tate exists between the two ports.

The TC7MBD3245AFK is enable to realize the shift of signal level from 5 V o 3.3 V.

All inputs of TC7MBD3245AFK are equipped with protection circuits against static ischarge.
