TC7MAR2245FK

Features: • 26- series resistors on outputs.• Low voltage operation: VCC = 1.8~3.6 V• High speed operation:tpd = 4.4 ns (max) (VCC = 3.0~3.6 V)tpd = 5.6 ns (max) (VCC = 2.3~2.7 V)tpd = 9.8 ns (max) (VCC = 1.8 V)• 3.6 V tolerant inputs and outputs.• Output current: IOH...

product image

TC7MAR2245FK Picture
See larger image
SeekIC No. : 004514767 Detail

TC7MAR2245FK: Features: • 26- series resistors on outputs.• Low voltage operation: VCC = 1.8~3.6 V• High speed operation:tpd = 4.4 ns (max) (VCC = 3.0~3.6 V)tpd = 5.6 ns (max) (VCC = 2.3~2.7 V)t...

TC7MAR2245FK Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TC7MAR2245FK
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 26- series resistors on outputs.
• Low voltage operation: VCC = 1.8~3.6 V
• High speed operation:tpd = 4.4 ns (max) (VCC = 3.0~3.6 V)tpd = 5.6 ns (max) (VCC = 2.3~2.7 V)tpd = 9.8 ns (max) (VCC = 1.8 V)
• 3.6 V tolerant inputs and outputs.
• Output current: IOH/IOL = ±12 mA (min) (VCC = 3.0 V) IOH/IOL = ±8 mA (min) (VCC = 2.3 V) IOH/IOL = ±4 mA (min) (VCC = 1.8 V)
• Latch-up performance: ±300 mA
• ESD performance:Machine model > ±200 V Human body model > ±2000 V
• Package: VSSOP (US20)
• Bidirectional interface between 2.5 V and 3.3 V signals. (*1)
• Power down protection is provided on all inputs and outputs. (*2)
• Supports live insertion/withdrawal (*3)


Pinout

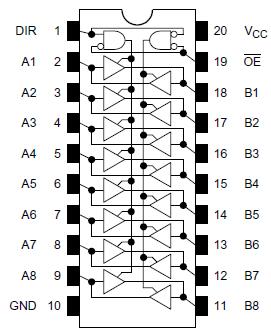

Connection Diagram


Specifications

Characteristics
Symbol
Rating
Unit
Supply voltage range
VCC
−0.5~4.6
V
DC input voltage
VIN
−0.5~4.6
V
DC output voltage
VOUT
−0.5~4.6(Note1)
V
−0.5~VCC + 0.5 (Note2)
Input diode current
IIK
−50
mA
Output diode current
IOK
±50 (Note3)
mA
DC output current
IOUT
±50
mA
Power dissipation
PD
180
mW
DC VCC/ground current
ICC/IGND
±100
mA
Storage temperature
Tstg
−65~150
Note1: Off-state
Note2: High or low state. IOUT absolute maximum rating must be observed.
Note3: VOUT<GND, VOUT>VCC


Description

The TC7MAR2245FK is a high performance CMOS octal bus transceiver. Designed for use in 1.8, 2.5 or 3.3 V systems, it achieves high speed operation while maintaining the CMOS low power dissipation.

TC7MAR2245FK is also designed with over voltage tolerant inputs and outputs up to 3.6 V.

The direction of data transmission is determined by the level of the DIR inputs. The OE inputs can be used to disable the device so that the busses are effectively isolated.

The TC7MAR2245FK series resistor helps reducing output overshoot and undershoot without external resistor.
All inputs of TC7MAR2245FK are equipped with protection circuits against static discharge
