TC58NVG0S3AFT05

Features: • Organization Memory cell array 2112 × 64K × 8 Register 2112 × 8Page size 2112 bytes Block size (128K + 4K) bytes• Modes Read, Reset, Auto Page Program Auto Block Erase, Status Read• Mode control Serial input/output Command control• Powersupply VCC = 2.7 V to 3.6...

product image

TC58NVG0S3AFT05 Picture
See larger image
SeekIC No. : 004514209 Detail

TC58NVG0S3AFT05: Features: • Organization Memory cell array 2112 × 64K × 8 Register 2112 × 8Page size 2112 bytes Block size (128K + 4K) bytes• Modes Read, Reset, Auto Page Program Auto Block Erase, Statu...

TC58NVG0S3AFT05 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TC58NVG0S3AFT05
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Organization
       Memory cell array 2112 × 64K × 8
       Register 2112 × 8
       Page size 2112 bytes
       Block size (128K + 4K) bytes
• Modes
       Read, Reset, Auto Page Program
       Auto Block Erase, Status Read
• Mode control
       Serial input/output
       Command control
• Powersupply VCC = 2.7 V to 3.6 V
• Program/Erase Cycles 1E5 Cycles (With ECC)
• Access time
       Cell array to register 25 µs max
       Serial Read Cycle 50 ns min
• Operating current
       Read (50 ns cycle) 10 mA typ.
       Program (avg.) 10 mA typ.
       Erase (avg.) 10 mA typ.
       Standby 50 µA max
• Package
       TSOPI48-P-1220-0.50 (Weight: 0.53 g typ.)


Pinout

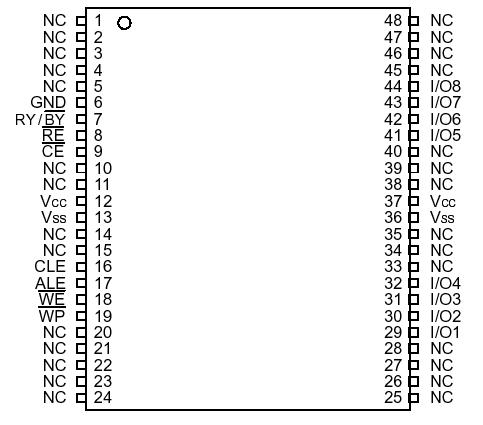

Connection Diagram


Specifications

SYMBOL RATING VALUE UNIT
VCC Power Supply Voltage −0.6 to 4.6 V
VIN Input Voltage −0.6 to 4.6 V
VI/O Input /Output Voltage −0.6 V to VCC + 0.3 V ( 4.6 V) V
PD Power Dissipation 0.3 W
TSOLDER Soldering Temperature (10 s) 260 °C
TSTG Storage Temperature −55 to 150 °C
TOPR Operating Temperature 0 to 70 °C



Description

The TC58NVG0S3AFT05 is a single 3.3-V 1G-bit (1,107,296,256 bits) NAND Electrically Erasable and Programmable Read-Only Memory (NAND EEPROM) organized as (2048 + 64) bytes × 64 pages × 1024 blocks. The TC58NVG0S3AFT05 has a 2112-byte static registers which allow program and read data to be transferred between the register and the memory cell array in 2112-byte increments. The Erase operation is implemented in a single block unit (128 Kbytes + 4 Kbytes: 2112 bytes × 64 pages).

The TC58NVG0S3AFT05 is a serial-type memory device which utilizes the I/O pins for both address and data input/output as well as for command inputs. The Erase and Program operations are automatically executed making the TC58NVG0S3AFT05 most suitable for applications such as solid-state file storage, voice recording, image file memory for still cameras and other systems which require high-density non-volatile memory data storage.
