Product Details

Description



Features:

Power supply voltage VDD= 2.7 V~3.6 V
Operating temperature Ta =−40°C~85°C
Organization 2M * 8 bits / 1M * 16 bits
Functions  Auto Program, Auto Erase Fast Program Mode  Program Suspend/Resume Erase Suspend/Resume data polling / Toggle bit block protection Automatic Sleep, support for hidden ROM area common flash memory interface (CFI) Byte/Word Modes
Block erase architecture 1 * 16 Kbytes / 2 * 8 Kbytes 1 * 32 Kbytes / 31 * 64 Kbytes
Boot block architecture TC58FVT160AFT/AXB: top boot block TC58FVB160AFT/AXB: bottom boot block
Mode control Compatible with JEDEC standard commands
Erase/Program cycles 105 cycles typ.
Access time 70 ns (CL: 30 pF) 100 ns (CL: 100 pF)
Power consumption 5 µA  (Standby) 30 mA (Read operation) 15 mA (Program/Erase operations)
Package TC58FVT160/B160AFT:  TSOPI48-P-1220-0.50 (weight: 0.51 g)  TC58FVT160/B160AXB:  P-TFBGA48-0608-0.80AZ (weight: 0.090 g)

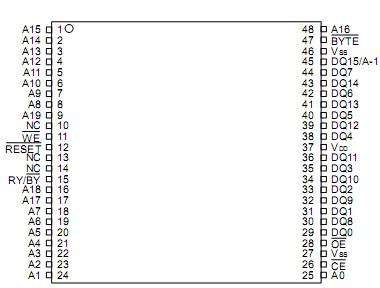

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER RANGE UNIT
VDD VDD Supply Voltage -0.6~4.6 V V
VIN Input Voltage −0.6~VDD +0.5 ( 4.6) V
VDQ Input/Output Voltage −0.6~VDD +0.5 ( 4.6) V
VIDH Maximum Input Voltage for A9, OE and RESET 13.0 V
PD Power Dissipation 126 mW
TSOLDER Soldering Temperature (10 s) 260 °C
TSTG Storage Temperature -55~150 °C
TOPR Operating Temperature -40~85 °C
IOSHORT Output Short-Circuit Current(1) 100 mA



Description

The TC58FVT160/B160A is a 16,777,216-bit, 3.0-V read-only electrically erasable and programmable flash memory organized as 2,097,152 words × 8 bits or as 1,048,576 words × 16 bits. The TC58FVT160/B160A features commands for Read, Program and Erase operations to allow easy interfacing with microprocessors. The commands are based on the JEDEC standard. The Program and Erase operations are automatically executed in the chip.
