TC58B321FT

Features: • Power supply voltage VDD = 2.7 V~3.6 V• Operating temperature Ta = −40°C~85°C• Organization 4M * 8 bits / 2M * 16 bits• FunctionsSimultaneous Read/Write Auto Program, Auto Erase Fast Program Mode / Acceleration Mode Program Suspend/Resume Erase Suspend/Res...

product image

TC58B321FT Picture
See larger image
SeekIC No. : 004514182 Detail

TC58B321FT: Features: • Power supply voltage VDD = 2.7 V~3.6 V• Operating temperature Ta = −40°C~85°C• Organization 4M * 8 bits / 2M * 16 bits• FunctionsSimultaneous Read/Write Aut...

TC58B321FT Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TC58B321FT
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Power supply voltage VDD = 2.7 V~3.6 V
• Operating temperature Ta = −40°C~85°C
• Organization 4M * 8 bits / 2M * 16 bits
• Functions
Simultaneous Read/Write Auto Program, Auto Erase Fast Program Mode / Acceleration Mode Program Suspend/Resume Erase Suspend/Resume data polling / Toggle bit block protection, boot block protection Automatic Sleep, support for hidden ROM area common flash memory interface (CFI) Byte/Word Modes
• Block erase architecture 8 * 8 Kbytes / 63 * 64 Kbytes
• Boot block architecture
TC58FVT321FT/XB: top boot block
TC58FVB321FT/XB: bottom boot block
• Mode control Compatible with JEDEC standard commands
• Erase/Program cycles 105 cycles typ.
• Access time
70 ns (CL: 30 pF)
100 ns (CL: 100 pF)
• Power consumption
10 A (Standby)
30 mA (Read operation)
15 mA (Program/Erase operations)
• Package
TC58FVT321/B321FT:
TSOPI48-P-1220-0.50 (weight: 0.51 g)
TC58FVT321/B321XB:
P-TFBGA56-0710-0.80AZ (weight: 0.125 g)




Pinout

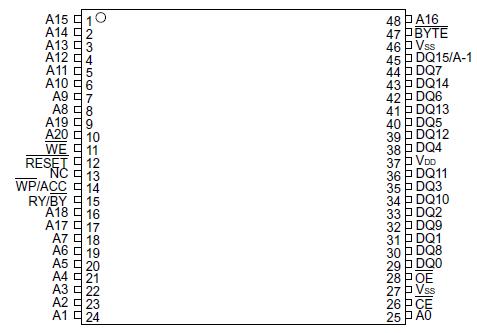

Connection Diagram


Specifications

SYMBOL
PARAMETER
RANGE
UNIT
VDD
 VDD Supply Voltage
−0.6~4.6
V
VIN
 Input Voltage
−0.6~VDD + 0.5 ( 4.6)
V
VDQ
 Input/Output Voltage
−0.6~VDD + 0.5 ( 4.6)
V
VIDH
 Maximum Input Voltage for A9, OE and RESET
13.0
V
VACCH
 Maximum Input Voltage for WP/ACC
10.5
V
PD
 Power Dissipation
126
mW
TSOLDER
 Soldering Temperature (10 s)
260
°C
TSTG
 Storage Temperature
−55~150
°C
TOPR
 Operating Temperature
−40~85
°C
IOSHORT
 Output Short-Circuit Current(1)
100
mA
(1) Outputs should be shorted for no more than one second.
No more than one output should be shorted at a time.


Description

The TC58B321FT is a 33,554,432-bit, 3.0-V read-only electrically erasable and programmable flash memory organized as 4,194,304 words × 8 bits or as 2,097,152 words × 16 bits. The TC58B321FT features commands for Read, Program and Erase operations to allow easy interfacing with microprocessors. The commands are based on the JEDEC standard. The Program and Erase operations are automatically executed in the chip. The TC58B321FT also features a Simultaneous Read/Write operation so that data can be read during a Write or Erase operation.
