IC FLASH 128MBIT 50NS 48TSOP
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Features: • Organization Memory cell allay 528 * 32K * 8 Register 528 * 8 Page size 528 byte...
Series: | - | Manufacturer: | Toshiba | ||
Format - Memory: | FLASH | Memory Type: | FLASH - NAND | ||
Available Set Gain : | 5.9 dB | Memory Size: | 128M (16M x 8) | ||
Speed: | 50ns | Interface: | Serial | ||
Voltage - Supply: | 2.7 V ~ 3.6 V | Operating Temperature: | -40°C ~ 85°C | ||
Package / Case: | 48-TFSOP (0.724", 18.40mm Width) | Supplier Device Package: | 48-TSOP I |
• Organization
Memory cell allay 528 * 32K * 8 Register 528 * 8 Page size 528 bytes Block size (16K + 512) bytes
• Modes
Read, Reset, Auto Page Program Auto Block Erase, Status Read
• Mode control
Serial input/output Command contro
• Power supply VCC = 2.7 V to 3.6 V
• Program/Erase Cycles 1E5 cycle (with ECC)
• Access time
Cell array to register 25 s max Serial Read Cycle 50 ns min
• Operating current
Read (50 ns cycle) 10 mA typ. Program (avg.) 10 mA typ. Erase (avg.) 10 mA typ. Standby 100 A

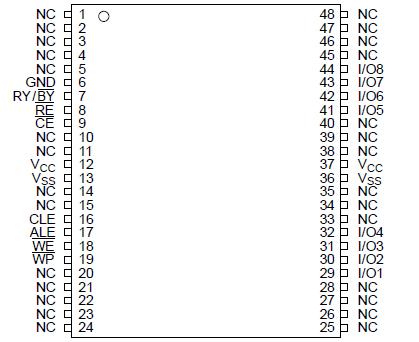

• Package
TSOPI48-P-1220-0.50 (Weight: 0.53 g typ.)
SYMBOL |
RATING |
VALUE |
UNIT |
VCC |
Power Supply Voltage |
−0.6 to 4.6 |
v |
VIN |
Input Voltage |
−0.6 to 4.6 |
v |
V I/O |
Input/Output Voltage |
−0.6 V to VCC + 0.3 V ( 4.6 V) |
V |
PD |
Power Dissipation |
0.3 |
W |
Tsolder |
Soldering Temperature (10s) |
260 |
°C |
Tstg |
Storage Temperature |
−55 to 150 |
°C |
Topr |
Operating Temperature |
−40 to 85 |
°C |
The TC58128AFTI is a single 3.3 V 128-Mbit (138,412,032) bit NAND Electrically Erasable and Programmable Read-Only Memory (NAND E2PROM) organized as 528 bytes × 32 pages × 1024 blocks. The TC58128AFTI has a 528-byte static register which allows program and read data to be transferred between the register and the memory cell array in 528-byte increments. The Erase operation is implemented in a single block unit (16 Kbytes + 512 bytes: 528 bytes × 32 pages).
The TC58128AFTI is a serial-type memory device which utilizes the I/O pins for both address and data input/output as well as for command inputs. The Erase and Program operations are automatically executed making the TC58128AFTI most suitable for applications such as solid-state file storage, voice recording, image file memory for still cameras and other systems which require high-density non-volatile memory data storage.
