TC4467

Features:

`High Peak Output Current ............................... 1.2A
` Wide Operating Range .......................... 4.5 to 18V
`Symmetrical Rise and Fall Times ....................25nsec
` Short, Equal Delay Times ............................ 75nsec
`Latchproof! Withstands 500mA Inductive Kickback
` 3 Input Logic Choices - AND / NAND / AND + Inv
` 2kV ESD Protection on All Pins

Application

· General-Purpose CMOS Logic Buffer
·Driving All Four MOSFETs in an H-Bridge
· Direct Small Motor Driver
· Relay or Peripheral Drivers
·CCD Driver
· Pin-Switching Network Driver

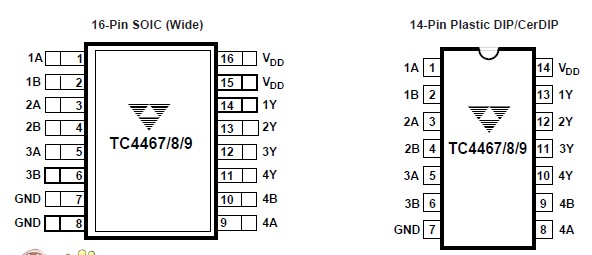

Pinout






Specifications

Parameter NameValuePowerQuad Peak Output Current (mA)1200Output Resistance (RH/RL)(Max. @ 25°C)15/15Max. Supply Voltage (V)18Input/Output Delay (td1, td2)1 (ns)75/75ConfigurationInverting DescriptionLow-side MOSFET Drivers, 0.5A to 1.2A Peak Output CurrentOperating Temp. Range (°C)-55 to 125

Parameter Name	Value
Power	Quad
Peak Output Current (mA)	1200
Output Resistance (RH/RL)(Max. @ 25°C)	15/15
Max. Supply Voltage (V)	18
Input/Output Delay (td1, td2)1 (ns)	75/75
Configuration	Inverting
Description	Low-side MOSFET Drivers, 0.5A to 1.2A Peak Output Current
Operating Temp. Range (°C)	-55 to 125

Supply Voltage ......................................................... +20V
Input Voltage ......................... (GND 5V) to (VDD + 0.3V)
Maximum Chip Temperature
Operating ........................................................ +150°C
Storage ............................................. 65° to +150°C
Maximum Lead Temperature
(Soldering, 10 sec) ......................................... +300°C
Operating Ambient Temperature Range
C Device .................................................. 0° to +70°C
E Device ............................................. 40° to +85°C
M Device ........................................... 55° to +125°C
Package Power Dissipation (TA £ 70°C)
14-Pin CerDIP ................................................840mW
14-Pin Plastic DIP ...........................................800mW
16-Pin Wide SOIC ..........................................760mW
Package Thermal Resistance
14-Pin CerDIP RqJ-A .............................. 100°C/W
RqJ-C ................................ 23°C/W
14-Pin Plastic DIP RqJ-A ................................80°C/W
RqJ-C ...................................35°C/W
16-Pin Wide SOIC RqJ-A ................................95°C/W
RqJ-C ...................................28°C/W
*Static-sensitive device. Unused devices must be stored in conductive material. Protect devices from static discharge and static fields. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions above those indicated in the operational sections of the specifications is not implied. Exposure to Absolute Maximum Rating Conditions for extended periods may affect device reliability.

Description

The TC4467 four-output CMOS buffer/drivers are an expansion from our earlier single- and dual-output drivers. Each driver has been equipped with a two-input logic gate for added flexibility. The TC4467 drivers can source up to 250 mA into loads referenced to ground. Heavily loaded clock lines, coaxial cables, and piezoelectric transducers can all be easily driven with the 446X series drivers. The only limitation on loading is that total power dissipation in the IC must be kept within the power dissipation limits of the package. The TC4467 series will not latch under any conditions within their power and voltage ratings. They are not subject to damage when up to 5V of noise spiking (either polarity) occurs on the ground line. They can accept up to half an amp of inductive kickback current (either polarity) into their outputs without damage or logic upset. In addition, all terminals of TC4467 are protected against ESD to at least 2000V.

The TC4467 four-output CMOS buffer/drivers are an expansion from our earlier single- and dual-output drivers. Each driver has been equipped with a two-input logic gate for added flexibility.
The TC4467 drivers can source up to 250 mA into loads referenced to ground. Heavily loaded clock lines, coaxial
cables, and piezoelectric transducers can all be easily driven with the 446X series drivers. The only limitation on
loading is that total power dissipation in the IC must be kept within the power dissipation limits of the package.
The TC4467 series will not latch under any conditions within their power and voltage ratings. They are not subject
to damage when up to 5V of noise spiking (either polarity) occurs on the ground line. They can accept up to half an amp of inductive kickback current (either polarity) into their outputs without damage or logic upset. In addition, all terminals are protected against ESD to at least 2000V.
