Features: • Low Quiescent Current: 300µA Max• Capacitive Inputs With 300mV Hysteresis• Both Inputs Must Be Driven to Drive Load• Low Output Leakage• High Peak Current Capability• Fast Output Rise Time• Outputs Individually TestableApplication• ...
TC4403: Features: • Low Quiescent Current: 300µA Max• Capacitive Inputs With 300mV Hysteresis• Both Inputs Must Be Driven to Drive Load• Low Output Leakage• High Peak Cur...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Supply Voltage..................................................... +22V
Package Thermal Resistance
CERDIP RJ-A............................................. 150/W
CERDIP RJ-C .............................................. 50/W
PDIP RJ-A................................................. 125/W
PDIP RJ-C................................................... 42/W
Operating Temperature Range.
C Version...............................................0to +70
E Version ......................................... -40 to +85
M Version........................................ -55 to +125
Storage Temperature Range ................ -65to +150
*Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions above those indicated in the operation sections of the specifications is not implied. Exposure to Absolute Maximum Rating conditions for extended periods may affect device reliability.

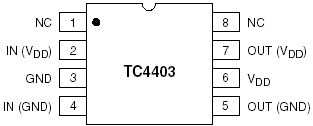

The TC4403 is a modified version of the TC4425 driver, intended to drive floating or isolated loads requiring high-current pulses. The load is intended to be connected between the outputs without other reference to supply or ground. Then, only when both logic inputs and the VDD input are energized, is power supplied to the load. This construction allows the implementation of a wide variety of redundant input controllers.
The low OFF-state output leakage and independence of the two half-circuits permit a wide variety of testing schemes to be utilized to assure functionality. The high peak current capability, short internal delays, and fast output rise and fall times ensure that sufficient power will be available to the load when it is needed. The TTL and CMOS compatible inputs allow operation from a wide variety of input devices. The ability to swing the inputs negative without affecting device performance allows negative biases to be placed on the inputs for greater safety. In addition, the capacitive nature of the inputs allows the use of series resistors on the inputs for extra noise suppression.
The TC4403 is built for outstanding ruggedness and reliability in harsh applications. Input voltage excursions above the supply voltage or below ground are clamped internally without damaging the device. The output stages are power MOSFETs with high-speed body diodes to prevent damage to the driver from inductive kickbacks.
