Features: * High Peak Output Current 1.5A
* Wide Operating Range
- 4.5V to 30V
* High Capacitive Load Drive Capability 1000pF in 25nsec
* Short Delay Times <78nsec Typ.
* Low Supply Current:
- With Logic "1" Input 2.5mA
- With Logic "0" Input 300A
* Low Output Impedance 7?
* Latch-Up Protected: Will Withstand >300mAReverse Current

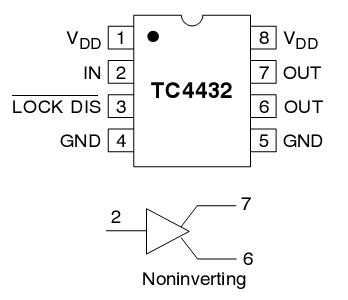

* ESD Protected 4kVPinoutSpecificationsPower | Single |
Peak Output Current (mA) | 1500 |
Output Resistance (RH/RL)(Max. @ 25°C) | 10/10 |
Max. Supply Voltage (V) | 30 |
Input/Output Delay (td1, td2)1 (ns) | 80/90 |
Configuration | Non-Inverting |
Description | High-Side/Low-Side MOSFET Drivers |
Operating Temp. Range (°C) | -40 to 125 |
Power |
Single |
Peak Output Current (mA) |
1500 |
Output Resistance (RH/RL)(Max. @ 25°C) |
10/10 |
Max. Supply Voltage (V) |
30 |
Input/Output Delay (td1, td2)1 (ns) |
80/90 |
Configuration |
Non-Inverting |
Description |
High-Side/Low-Side MOSFET Drivers |
Operating Temp. Range (°C) |
-40 to 125 |
Supply Voltage....................................................... 36V
Input Voltage (Note 1)....................VDD + 0.3V to GND
Package Power Dissipation (TA 70°C)
PDIP........................................................ 730mW
CERDIP................................................... 800mW
SOIC........................................................ 470mW
Package Thermal Resistance
CERDIP RJ-A........................................ 150°C/W
CERDIP RJ-C ......................................... 50°C/W
PDIP RJ-A ............................................. 125°C/W
PDIP RJ-C ............................................... 42°C/W
SOIC RJ-A ............................................250°C/W
SOIC RJ-C .............................................. 75°C/W
Operating Temperature Range
C Version.........................................0°C to +70°C
E Version..................................... -40°C to +85°C
Storage Temperature Range............. -65°C to +150°C
*Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions above those indicated in the operation sections of the specifications is not implied. Exposure to Absolute Maximum Rating conditions for extended periods may affect device reliability.DescriptionThe TC4432 are 30V CMOS buffer/drivers suitable for use in high-side driver applications. They will not latch up under any conditions within their power and voltage ratings. They can accept, without damage or logic upset, up to 300mA of reverse current (of either polarity) being forced back into their outputs. All terminals of TC4432 are fully protected against up to 4 kV of electrostatic discharge. Under-voltage lockout circuitry forces the output to a "low" state when the input supply voltage drops below 7V. For operation in lower voltages, disable the lockout and start-up circuit by grounding pin 3(LOCK DIS); for all other situations, pin 3 (LOCK DIS) should be left floating. The under-voltage lockout and start-up circuit of TC4432 gives brown out protection when driving MOSFETS.
The TC4432 are 30V CMOS buffer/drivers suitable for use in high-side driver applications. They will not latch up under any conditions within their power and voltage ratings. They can accept, without damage or logic upset, up to 300mA of reverse current (of either polarity) being forced back into their outputs. All terminals of TC4432 are fully protected against up to 4kV of electrostatic discharge.
Under-voltage lockout circuitry of TC4432 forces the output to a "low" state when the input supply voltage drops below 7V. For operation in lower voltages, disable the lockout and start-up circuit by grounding pin 3 (LOCK DIS); for all other situations, pin 3 (LOCK DIS) should be left floating. The under-voltage lockout and start-up circuit of TC4432 gives brown out protection when driving MOSFETS.
