`High Peak Output Current -1.5A
`Wide Input Supply Voltage Operating Range:
-4.5V to 18V
`High Capacitive Load Drive Capability -1000pF in 25ns (typ.)
`Short Delay Times -40ns (typ.
`Matched Rise and Fall Times
`Low Supply Current:
-With Logic '1' Input-4
-With Logic '0' Input-400
`Low Output Impedance -7
`Latch-Up Protected: Will Withstand 0.5A Reverse Current
`Input: Will Withstand Negative Inputs Up to 5V
`ESD Protected - 4kV

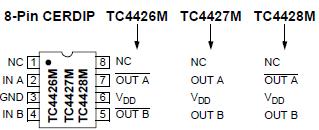

`Pin-Compatible with the TC426M/TC427M/ TC428M, TC4426AM/TC4427AM/TC4428AM Devices
`Wide Operating Temperature Range:
- -55 to +125
`See TC4426/TC4427/TC4428 data sheet (DS21422) for additional temperature range and packaging offerings
·Switch-mode Power Supplies
·Line Drivers
·Pulse Transformer Drive
Absolute Maximum Ratings
Supply Voltage..............................................................+22V
input Voltage, IN A or IN B..........(VDD + 0.3V) to (GND - 5V)
Storage Temperature Range........................-65 to +150
Maximum Junction Temperature.................................+150
Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions above those indicated in the operation sections of the specifications is not implied. Exposure to Absolute Maximum Rating conditions for extended periods may affect device reliability.
The TC4426M/TC4427M/TC4428M are improved versions of the earlier TC426M/TC427M/TC428M amily of MOSFET drivers. The TC4426M/TC4427M/
TC4428M devices have matched rise and fall times when charging and discharging the gate of a MOSFET.
These TC4428M are highly latch-up resistant under any conditions within their power and voltage ratings. They are not subject to damage when up to 5V of noise spiking (of either polarity) occurs on the ground pin. They can accept, without damage or logic upset, up to 500mA of reverse current (of either polarity) being orced back into their outputs. All terminals of TC4428M are fully protected against Electrostatic Discharge (ESD) up to 4kV.
The TC4426M/TC4427M/TC4428M MOSFET drivers can easily charge/discharge 1000pF gate capacitances in under 30ns and provide low enough mpedances in both the on and off states to ensure the MOSFET's intended state will not be affected, even by arge transients.
The TC4426AM/TC4427AM/TC4428AM family of devices are also compatible drivers. The TC4426AM/ TC4427AM/TC4428AM devices have matched eading and falling edge input-to-output delay times, in addition to the matched rise and fall times of the TC4426M/TC4427M/TC4428M devices.
