Features: • High-Resolution, Solid-State Image Sensor for NTSC Color TV Applications
• 8-mm Image-Area Diagonal, Compatible With 1/2" Vidicon Optics
• 755 (H) x 242 (V) Active Elements in Image-Sensing Area
• Advanced On-Chip Signal Processing
• Low Dark Current
• Electron-Hole Recombination Antiblooming
• Dynamic Range . . . More Than 70 dB
• High Sensitivity
• High Photoresponse Uniformity
• High Blue Response
• Single-Phase Clocking
• Separate Outputs for Each Color (RGB)

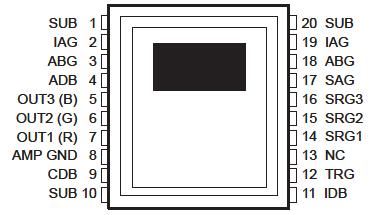

• Solid-State Reliability With No Image Burn-in, Residual Imaging, Image Distortion, Image Lag, or MicrophonicsPinout
SpecificationsSupply voltage range for ADB, CDB, IDB (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 V to 15 V
Input voltage range for ABG, IAG, SAG, SRG, TRG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 V to 15 V
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30°C to 85°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30°C to 85°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 1: All voltage values are with respect to the substrate terminal.
DescriptionThe TC244 is a frame-transfer charge-coupled device (CCD) image sensor designed for use in single-chip color NTSC TV applications. The device is intended to replace the 1/2-inch vidicon tube in applications requiring small size, high reliability, and low cost.
The image-sensing area of the TC244 is configured into 242 lines with 786 elements in each line. Twenty-nine lements are provided in each line for dark reference. The blooming protection incorporated into the sensor is based on recombining excess charge with charge of opposite polarity in the substrate. This antiblooming is activated by supplying clocking pulses to the antiblooming gate, which is an integral part of each image-sensing element.
The sensor is designed to operate in an interlace mode, electronically displacing the image-sensing elements by one-half of a vertical line during the charge integration period in alternate fields, effectively increasing the vertical resolution and minimizing aliasing. The single-chip color-sensing capability of the TC244 is achieved by laminating a striped color filter with RGB organization on top of the image-sensing area. The stripes are precisely aligned to the sensing elements, and the signal charge columns are multiplexed during the readout into three separate registers with three separate outputs corresponding to each individual color.
