TC210

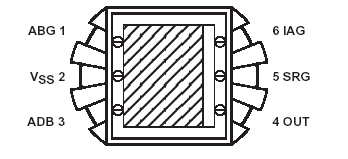

Supply voltage range for ADB (see Note 1).................................. 0 V to 15 V
Input voltage range for IAG, SRG, ABG, V_I................................. 15 V to 5 V
Operating free-air temperature range..................................... 30 to 85
Storage temperature range, ................................................T_A 30to 85
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds.......... 260

† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTE 1: All voltage values are with respect to V_SS.

The TC210 is a full-frame charge-coupled device (CCD) image sensor designed specifically for medical and industrial applications requiring ruggedness and small size. The image-sensing area is configured into 165 horizontal lines each containing 192 pixels. Twelve additional pixels are provided at the end of each line to establish a dark reference and line clamp. The antiblooming feature is activated by supplying clock pulses to the antiblooming gate, an integral part of each image-sensing element. The charge is converted to signal voltage at 4 mV per electron by a high-performance structure with built-in automatic reset and a voltage-reference generator. The signal is further buffered by a low-noise two-stage source-follower amplifier to provide high output-drive capability.

The TC210 is supplied in a 5-mm (0.20-in) diameter ceramic and clear plastic molded package with a glass window. The glass window can be cleaned using any standard method for cleaning optical assemblies or by wiping the surface with a cotton swab soaked in alcohol.

The TC210 is characterized for operation from 10 to 45.
