` Full duplex asynchronous operating modes
8- or 9-bit data frames, LSB first
Parity bit generation/checking
One or two stop bits
Baudrate from 3 MBaud to 0.71 Baud (@ 48 MHz clock)
` Multiprocessor mode for automatic address/data byte detection
` Loop-back capability
` Support for IrDA data transmission up to 115.2 KBaud maximum
` Half-duplex 8-bit synchronous operating mode
Baudrate from 6 MBaud to 488.3 Baud (@ 48 MHz clock)
` Double buffered transmitter/receiver
` Interrupt generation
On a transmitter buffer empty condition
On a transmit last bit of a frame condition
On a receiver buffer full condition
On an error condition (frame, parity, overrun error)
` FIFO
8 bytes receive FIFO (RXFIFO)
8 bytes transmit FIFO (TXFIFO)
Independent control of RXFIFO and TXFIFO
9-bit FIFO data width
Programmable Receive/Transmit Interrupt Trigger Level
Receive and transmit FIFO filling level indication
Overrun error generation

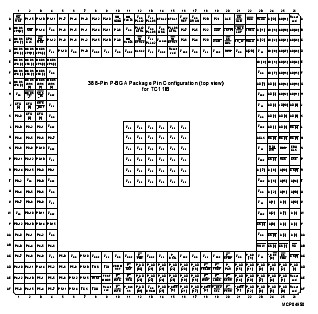

` Two pin pair RXD/TXD available at Port 1
Parameter |
Symbol |
Limit Values |
Unit |
Notes | |
min. |
max. | ||||
Ambient temperature |
TA |
-25 |
85 |
under bias | |
Storage temperature |
TST |
-65 |
150 |
||
Junction temperature |
TJ |
110 |
under bias | ||
Voltage on I/O Supply pinswith respect to ground (VSS ) |
VDDP |
0.5 |
4.5 |
V |
|
Voltage on Core Supply pins with respect to ground (VSS ) |
VDD |
0.3 |
2.4 |
V |
|
Voltage on PLL Supply pins with respect to ground (VSS ) |
VDDPLL |
0.3 |
2.4 |
V |
|
Voltage on Oscillator Supply pins with respect to ground (VSS ) |
VDDOSC |
0.3 |
2.4 |
V |
|
Voltage on eDRAM Supply pins with respect to ground (VSS ) |
VDDDRAM |
0.3 |
2.4 |
V |
|
Voltage on any pin with respect to ground (VSS ) |
VIN |
-0.5 |
4.5 |
V |
|
Input current on any pin during overload condition |
IIN |
-10 |
10 |
mA |
|
Absolute sum of all input currents during overload condition |
IIN |
|100| |
mA |
||
Power dissipation |
PDISS |
1.6 |
W |
Note: Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
During absolute maximum rating overload conditions (VIN >VDD or VIN <VSS ) the voltage on VDD pins with respect to ground (VSS ) must not exceed the values defined by the absolute maximum ratings.
