TAS5508

Features: · Automated Operation With an Easy to Use Control Interface· I2C Serial Control Slave Interface· Integrated AM Interference Avoidance Circuitry· Single 3.3-V Power Supply· 64-Pin TQFP Package· 5-V Tolerant InputsPinoutSpecifications UNIT Supply voltage, DVDD and DVD_P...

product image

TAS5508 Picture
See larger image
SeekIC No. : 004512480 Detail

TAS5508: Features: · Automated Operation With an Easy to Use Control Interface· I2C Serial Control Slave Interface· Integrated AM Interference Avoidance Circuitry· Single 3.3-V Power Supply· 64-Pin TQFP...

TAS5508 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TAS5508
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Automated Operation With an Easy to Use Control Interface
· I2C Serial Control Slave Interface
· Integrated AM Interference Avoidance Circuitry
· Single 3.3-V Power Supply
· 64-Pin TQFP Package
· 5-V Tolerant Inputs

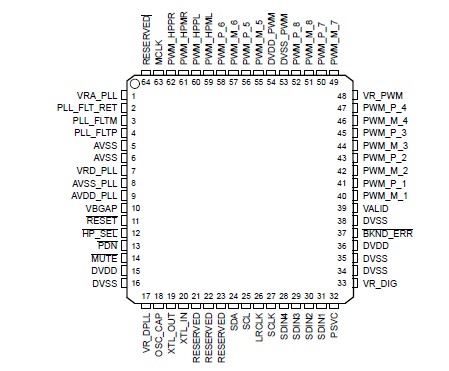

Pinout

Connection Diagram


Specifications


UNIT
Supply voltage, DVDD and DVD_PWM
0.3 V to 3.6 V
Supply voltage, AVDD_PLL
0.3 V to 3.6 V
Input voltage 3.3-V digital input
0.5 V to DVDD + 0.5 V
5 V tolerant(2) digital input
0.5 V to to 6 V
1.8 V LVCMOS(3)
-0.5 V to VREF(1) + 0.5 V
Input clamp current, IIK (VI < 0 or VI > 1.8 V
±20 mA
Output clamp current, IOK (VO < 0 or VO > 1.8 V
±20 mA
Operating free-air temperature
0 to 70
Storage temperature range, Tstg
65 to 150

† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTES: 1. VREF is a 1.8-V supply derived from regulators internal to the TAS5508 chip. VREF is on terminals VRA_PLL, VRD_PLL, VR_DPLL, VR_DIG, and VR_PWM. These terminals are provided to permit use of external filter capacitors, but should not be used to source power to external devices.

2. 5-V tolerant inputs are RESET, PDN, MUTE, HP_SEL, SCLK, LRCLK, MCLK, SDIN1, SDIN2, SDIN3, SDIN4, SDA, and SCL.

3. VRA_PLL, VRD_PLL, VR_DPLL, VR_DIG, VR_PWM
