TAS5186A

` Total Output Power @ 10% THD+N
` 5*30 W @ 6 + 1*60 W @ 3
`105-dB SNR (A-Weighted)
` 0.07% THD+N @ 1 W
` Power Stage Efficiency > 90%  Recommended Loads (SE)
` Integrated Self-Protection Circuits
` Undervoltage
`overtemperature
` Overload
` Short Circuit
` Integrated Active-Bias Control to Avoid DC Pop

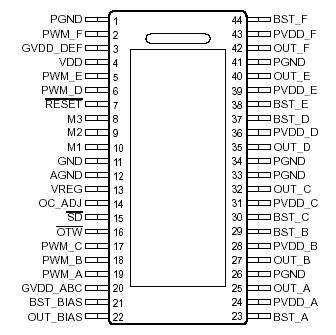

` Thermally Enhanced 44-Pin HTSSOP Package
` EMI-Compliant When Used With  Recommended System Design

The TAS5186A is a high-performance, six-channel, digital-amplifier power stage with an improved protection system. The TAS5186A is capable of driving a 6-, singleended load up to 30 W per each front/satellite channel and a 3-, single-ended subwoofer greater than 60 W at 10% THD+N performance.

A low-cost, high-fidelity audio system can be built using a TI chipset comprising a modulator (e.g., TAS5086) and the TAS5186A. This device does not require power-up sequencing because of the internal power-on reset.

The TAS5186A requires only simple passive demodulation filters on its outputs to deliver high-quality, high-efficiency audio amplification. The device efficiency of the TAS5186A is greater than 90% when driving 6- satellites and a 3- subwoofer speaker.

The TAS5186A has an innovative protection system integrated on-chip, safeguarding the device against a wide range of fault conditions that could damage thesystem. These safeguards are short-circuit protection, overload protection, undervoltage protection, and overtemperature protection. The TAS5186A has a new proprietary current-limiting circuit that reduces the possibility of device shutdown during high-level music transients. A new programmable overcurrent detector allows the use of lower-cost inductors in the demodulation output filter.
