Features: ` Total Output Power @ 10% THD+N
5*30 W @ 6W + 1*60 W @ 3W
` 105-dB SNR (A-Weighted)
` < 0.05% THD+N @ 1 W
` Power Stage Efficiency > 90% Into Recommended Loads (SE)
` Integrated Self-Protection Circuits
Undervoltage
Overtemperature
Overload
Short Circuit
` Integrated Active-Bias Control to Avoid DC Pop
` Thermally Enhanced 44-pin HTSSOP Package
` EMI-Compliant When Used With Recommended System Design

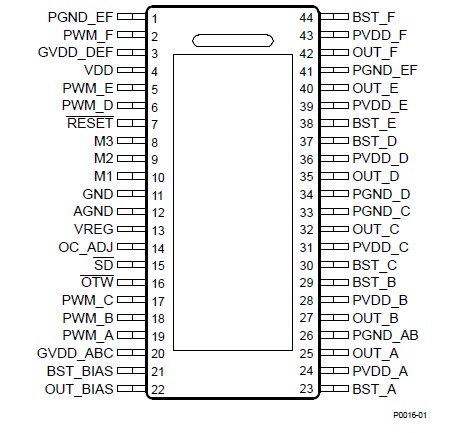

Pinout
Specificationsover operating free-air temperature range (unless otherwise noted)(1)
|
TAS5186 |
| VDD to AGND |
0.3 V to 13.2 V |
| GVDD_X to AGND |
0.3 V to 13.2 V |
| PVDD_X to PGND_X (2) |
0.3 V to 50 V |
| OUT_X to PGND_X (2) |
0.3 V to 50 V |
| BST_X to PGND_X (2) |
0.3 V to 63.2 V |
| VREG to AGND |
0.3 V to 4.2 V |
| PGND_X to GND |
0.3 V to 0.3 V |
| PGND_X to AGND |
0.3 V to 0.3 V |
| GND to AGND |
0.3 V to 0.3 V |
| PWM_X, OC_ADJ, M1, M2, M3 to AGND |
0.3 V to 4.2 V |
| RESET, SD, OTW to AGND |
0.3 V to 7 V |
| Maximum operating junction temperature range (TJ ) |
0 to 125 |
| Storage temperature |
40 to 125 |
| Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds |
260 |
| Minimum PWM pulse duration, low |
30 ns |
(1) Stresses beyond those listed under absolute maximum ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under recommended operating conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) These voltages represent the dc voltage + peak ac waveform measured at the terminal of the device in all conditions.
DescriptionThe TAS5186 is a high-performance, six-channel, digital-amplifier power stage with an improved protection system.
The TAS5186 is capable of driving a 6-W, single-ended load up to 30 W per each front/satellite channel and a 3-W, single-ended subwoofer greater than 60 W at 10% THD+N performance.
A low-cost, high-fidelity audio system can be built using a TI chipset comprising a modulator (e.g., TAS5086) and the TAS5186. This device does not require power-up sequencing because of the internal power-on reset.
The TAS5186 requires only simple passive demodu-lation filters on its outputs to deliver high-quality,high-efficiency audio amplification. The efficiency of the TAS5186 is greater than 90% when driving 6-W satellites and a 3-W subwoofer speaker.
The TAS5186 has an innovative protection system integrated on-chip, safeguarding the device against a wide range of fault conditions that could damage the system. These safeguards are short-circuit protection, overload protection, undervoltage protection, and overtemperature protection. The TAS5186 has a new proprietary current-limiting circuit that reduces the possibility of device shutdown during high-level music transients. A new programmable overcurrent detector allows the use of lower-cost inductors in the demodu- lation output filter.
