TAS5182

` Stereo H-Bridge Controller
` Efficiency > 95%†
` 2x100 W (RMS) at 6 (BTL)†
` THD+N < 0.15% (Typical at 100 W at 6 , 1 kHz)‡
` Half-Bridge Independent Control
` Glueless Interface to TAS50XX Digital Audio PWM Processors
` 3.3-V Digital Interface
` Fault Detection
   - Overcurrent
   - Overtemperature
   - Undervoltage Protection for External MOSFETs

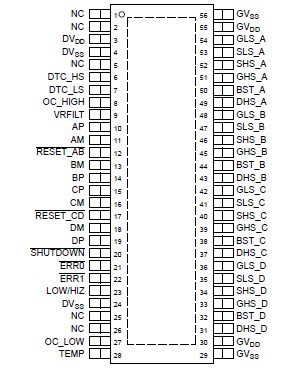

` Low Profile 56-Terminal TSSOP SMD Package

· AV Receivers
· High Power DVD Receivers
· Power Amplifiers
· Home Theater
· Subwoofer Driver

⁽¹⁾ Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

The TAS5182 device is a high-performance, stereo digital amplifier power stage controller. It is designed to drive two discrete bridge-tied-load (BTL) MOSFET output stages at up to 100 W per channel at 6 . The TAS5182 device, incorporating Texas Instrument's PurePath technology, is used in conjunction with a digital audio PWM processor (TAS50XX) and two discrete MOSFET H-bridges (4 MOSFETs per H-Bridge) to deliver high-power, true digital audio amplification. The efficiency of this digital amplifier can be greater than 95%, reducing the size of both the power supplies and heat sinks needed. The TAS5182 device accepts a stereo PWM 3.3-V input, and it controls the switching of the discrete H-bridges.

Overcurrent, overtemperature, and undervoltage protections are built into the TAS5182 device, safeguarding the H-bridge and speakers against output short-circuit conditions, overtemperature conditions, and other fault conditions that could damage the system.
