TAS5101

Features: ` 2 * 15 W High-Quality Digital Amplifier Power Stage` Single-Ended Output` >95-dB Dynamic Range (TDAA System)` THD+N < 0.1% (1 kHz, 1 W to 15 W RMS Into 4 )` Power Efficiency > 90% Into 4- to 8- Load` Low Profile, SMD 32-Pin PowerPADPackage Requires No Heat-Sink When Using Reco...

product image

TAS5101 Picture
See larger image
SeekIC No. : 004512455 Detail

TAS5101: Features: ` 2 * 15 W High-Quality Digital Amplifier Power Stage` Single-Ended Output` >95-dB Dynamic Range (TDAA System)` THD+N < 0.1% (1 kHz, 1 W to 15 W RMS Into 4 )` Power Efficiency > 9...

TAS5101 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TAS5101
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 2 * 15 W High-Quality Digital Amplifier Power Stage
` Single-Ended Output
` >95-dB Dynamic Range (TDAA System)
` THD+N < 0.1% (1 kHz, 1 W to 15 W RMS Into 4 )
` Power Efficiency > 90% Into 4- to 8- Load
` Low Profile, SMD 32-Pin PowerPADPackage Requires No Heat-Sink When Using Recommended Layout
` 2 * 15-W RMS Continuous Power Into 4
` Self-Protecting Design
` 3.3-V Digital Interface
` EMI Compliant When Used With Recommended System Design


Application

· Digital TV Audio Amplifier
· Car Audio Amplifiers and Head Units
· Internet Music Appliance
· Mini/Micro Component Systems






Pinout

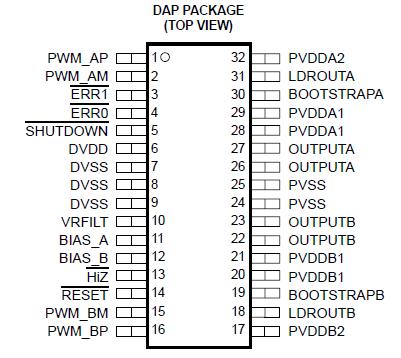

Connection Diagram


Specifications

DC supply voltage range: DVDD to DVSS . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 5.5 V
PWM_AP, PWM_AM, PWM_BP, PWM_BM . . . . . . . . . . . . . . . . . 0.3 V to DVDD + 0.3 V
RESET, HiZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to DVDD + 0.3 V
PVDDA1 to PVSS, PVDDB1 to PVSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 28 V
PVDDA2 to PVSS, PVDDB2 to PVSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 28 V
Output DMOS drain-to-source breakdown voltage . . . . . . . . . . . . . . . . . . . . . . . . 28 V
Operating junction temperature range, TJ . . . . . . . . . . . . . . . . . . . . . . 40 to 150
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 to 150
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds) . . . . . . . . . . .  .260

† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.


Description

The TAS5101 is a high-performance true digital stereo audio amplifier (TDAA) Power Stage, designed to drive 2 * 15 watts per channel. The TAS5101 incorporates TI's equibit technology and is used in conjunction with a Digital Audio PWM processor (TAS50xx) to deliver high-power, true digital audio amplification. The efficiency of this digital amplifier can be greater than 90%, reducing the size of both the power supplies and heat sinks needed. The TAS5101 accepts a stereo PWM 3.3V input and controls the switching of an internal CMOS H-bridge.

When used with the TAS50xx PWM Processor, system performance of less than 0.09% THD is attainable.

Over-current protection, over-temperature, and under-voltage protections are built into the TAS5101, safeguarding the H-bridge and speakers against output shorts, over-voltage conditions, and other fault conditions that could damage the system.
