TAS5026

` True Digital Audio Amplifier
` High Quality Audio
   96-dB SNR
   <0.1% THD+N
` Six-Channel Volume Control
   Patented Soft Volume
   Patented Soft Mute
` 16-, 20-, or 24-Bit Input Data
` Sampling Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz
` Supports Master and Slave Modes
` 3.3-V Power Supply Operation

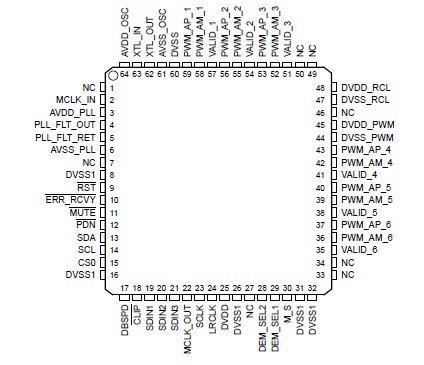

` Economical 64-Pin TQFP Package
` Digital De-Emphasis: 32 kHz, 44.1 kHz, and 48 kHz
` High Power Efficiency
` Clock Oscillator Circuit for Master Modes
` Low Jitter Internal PLL
` Soft Volume and Mute Update
` Excellent PSRR

Digital supply voltage range: DVDD_CORE, DVDD_PWM, DVDD_RCL . . . . . . . . . . . . . . . . . . 0.3 V to 4.2 V
Analog supply voltage range: AVDD_PLL, ADD_OSC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0.3 V to 4.2 V
Digital input voltage range, V_I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to DVDDX + 0.3 V
Operating free-air temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 to 85
Storage temperature range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 to 150
ESD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  2000 V
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
