Mounting Style
: SMD/SMT
Packaging
: Tray
Operating Supply Voltage
: 3 V to 3.6 V
Operating Temperature Range
: + 70 C
Supply Current
: 22 mA, 8 mA
Package / Case
: TQFP-48
Features: ` TAS5001 + TAS5100 TDAA System High Quality Digital Audio Amplification
` 96-dB Dynamic Range (TAS5001 Device)
` 93-dB Dynamic Range (TAS5001 and TAS5100 System Measured at Speaker Terminals)
` THD+N < 0.08% (1 kHz, 0 to 30 W RMS Into 6 ) (TAS5001 & TAS5100 System Measured at Speaker Terminals)
` Power Efficiency Is 90% Into 8- Load
` 16-, 20-, or 24-Bit Input Data
` 32-kHz, 44.1-kHz, 48-kHz, 88.2-kHz, 96-kHz Sampling Rates
` Economical 48-Pin TQFP Package
` Lower-Jitter Internal PLL
` 3.3-V Power Supply
` Mute
` Clicks and Pops Reduction (Patent Pending)Application· DVD Audio
· Home Theater

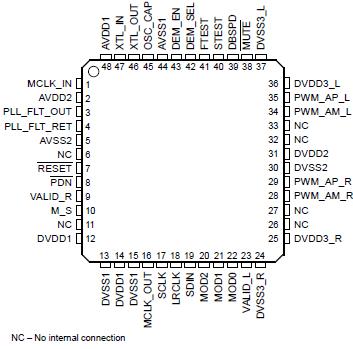

· Car Audio Amplifiers and Head UnitsPinout
SpecificationsAnalog supply voltage range, AVDD1, AVDD2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 4.2 V
Digital power supply voltage, DVDD1, DVDD2, DVDD3_L, DVDD3_R . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 4.2 V
Digital input voltage, VI (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to DVDDX + 0.3 V
Operating free-air temperature, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0 to 70
Storage temperature, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . 65 to 150
ESD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . 2000 V
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 1: DVDD1, DVDD2, DVDD3_L, DVDD3_RDescriptionThe true digital audio amplifier (TDAA) is a new paradigm in digital audio. One TDAA system consists of the TAS5001PFB PCM-PWM modulator device + TAS5001PFB PWM power output device. This system accepts a serial PCM digital audio stream and converts it to a 3.3-V PWM audio stream (TAS5001). The TAS5001PFB device then provides a large-signal PWM output. This digital PWM signal is then demodulated providing power output for driving loudspeakers. This patented technology provides low-cost, high-quality, highefficiency digital audio applicable to many audio systems developed for the digital age. The TAS5001PFB is an innovative, cost-effective, high-performance 24-bit stereo PCM-PWM modulator based on Equibittechnology. It has a wide variety of serial input options including right-justified (16, 20, or 24 bits), IIS (16, 20, or 24 bits), left-justified (16 bits), or DSP (16 bits) data formats. It is fully compatible with AES standard sampling rates of 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz. The TAS5001PFB also provides a de-emphasis function for 44.1-kHz and 48-kHz sampling rates.
Parameters: | Technical/Catalog Information | TAS5001PFB |
| Vendor | Texas Instruments |
| Category | Integrated Circuits (ICs) |
| Mounting Type | Surface Mount |
| Package / Case | 48-TQFP |
| Type | PWM Processor |
| Packaging | Tray |
| Applications | DVD, Home Theaters |
| Drawing Number | 296; 4073176; PFB; 48 |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | TAS5001PFB
TAS5001PFB
296 12212 ND
29612212ND
296-12212
|
TAS5001PFB Data Sheet
