Product Details

Description



Features:

` Support sixteen 10/100 Ethernet ports with RMII interface.
` External memory needed for 4Mb pipe-line SSRAM.
` Incorporating with private output buffering scheme to prevent HOL (head of line) blocking.
` Each port support priority-based queues with 4 levels and 802.1p QoS.
` Wire-speed store-and-forward switching with low latency.
`Automatic address learning with filtering of local frames or illegal frames.
` Embedded 2K entries of address look-up table.
` Support full/half duplex operations.
` Support auto-negotiation via MDIO to detect speed and duplex status.
` Serial EEPROM interface for auto-configuration for features.
` Support IEEE802.3x flow control for full-duplex operation.
` Support Back-Pressure flow control for half-duplex operation.
` Support port-trunking mode to aggregate the bandwidth to provide the functions of load-sharing and link backup.
` Support broadcast storm control scheme.
` Maximum 3 port-based VLAN groups can be defined by user.
` Support port-based port monitoring/snooping defined by user.
` Only one 50Mhz oscillator needed.
` 208-pin BGA, 3.3V with .18 m CMOS technology.


Pinout

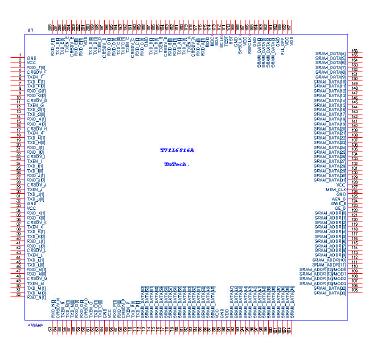

Connection Diagram


Description

The T71L6816A is a sixteen-port 10/100Mbps dual speed ethernet switch integrated with a built-in 2K entries of address table and supports a 4Mb external SSRAM. T71L6816A is also a high performance Fast-Ethernet switch with fully compliance with the IEEE802.3, 802.3u and 802.3x specifications. The T71L6816A can be implemented with external PHY chips and 4Mb pipe-line SSRAM. By default, it is targeted for applications to the stand-alone switch for low-cost SOHO and small enterprise market.
