Product Details

Description

Features:

• Single 3-V Supply Voltage
• High-power-added Efficient Power Amplifier (Pout Typically 28 dBm)
• Ramp-controlled Output Power
• Low-noise Preamplifier (NF Typically 2.1 dB)
• Biasing for External PIN Diode T/R Switch
• Current-saving Standby Mode
• Few External Components
• Package: QFN20

Pinout

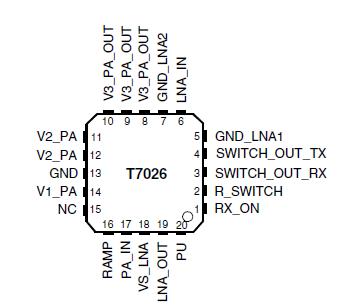

Connection Diagram

Specifications

Parameters	Symbol	Value	Unit
Supply voltage Pins VS_LNA, V1_PA, V2_PA and V3_PA_OUT, no RF	V_S	5	V
Junction temperature	T_j	150	°C
Storage temperature	T_stg	-40 to +125	°C
RF input power LNA	P_inLNA	-5 dBm	dBm
RF input power PA	P_inPA	10 dBm	dBm

Description

The T7026 is a monolithic SiGe transmit/receive front-end IC with power amplifier, low-noise amplifier and T/R switch driver. It is especially designed for operation in TDMA systems like DECT, IEEE 802.11 FHSS WLAN, home RF and ISM proprietary radios. Due to the ramp-control feature and a very low quiescent current, an external switch transistor for VS is not required.
