Product Details

Description



Features:

•Fast access time : 8/10/12/15 ns
• Low-power consumption : Stand-by current (CMOS input/output) Max. 300 uA
• Single +3.0V to 3.6V Power Supply
• TTL compatible , Tri-state output
• Common I/O capability
• Automatic power-down when deselected
• Available in 44-PIN TSOP-II and 48-pin CSP packages




Pinout

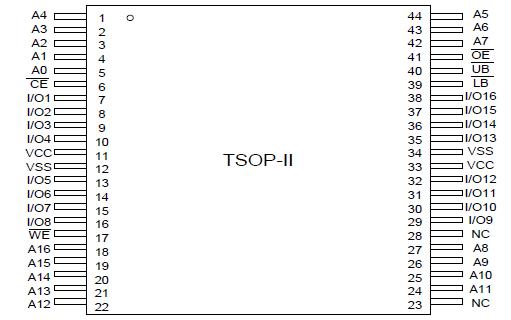

  Connection Diagram


Specifications

PARAMETER
SYM
MIN.
MAX.
UNIT
Voltage on Any Pin Relative to VSS
VR
-0.5
+4.6 V
V
Power Dissipation
PD
-
1.0
W
Storage Temperature
TSTG
-55
+150
°C
Temperature Under Bias
IBIAS
0
+70
°C


*Note: Stresses greater than those listed above Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only and function operation of the device at these or any other conditions outside those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating  onditions for extended periods may affect reliability.




Description

The T14L2M16A is a very fast access time CMOS Static RAM, organized as 131,072 words by 16 bits . This device is fabricated by high performance CMOS technology. It can be operated under wide power supply voltage range from +3.0V to +3.6V.

The T14L2M16A inputs and three-state outputs are TTL compatible and allow for direct interfacing with common system bus structures. Data retention is guaranteed at a power supply voltage as low as 2V.
