Product Details

Description

Features:

• Fast Address Access Times : 10/12/15ns
• Single 3.3V ±0.3V power supply
• Center power/ground pin configuration
• Low Power Consumption : 110/105/100mA
• TTL I/O compatible
• 2.0V data retention mode
• Automatic power-down when deselected
• Available packages :
- 32-pin 300 mil and 400 mil SOJ
- 32-pin TSOP 8x13.4mm and 8x20mm
- 36-Ball CSP (8x10mm)

Pinout

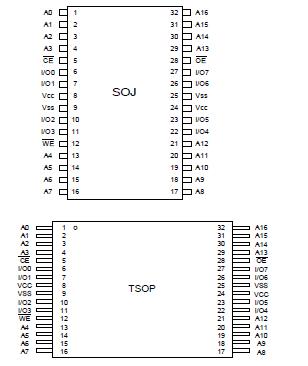

Connection Diagram

Specifications

PARAMETER	SYM	RATING	UNIT
Power Supply Voltage	Vcc	-0.5 to 4.6	V
Input Voltage	V_IN	-0.5 to Vcc+0.5	V
Output Voltage	V_OUT	-0.5 to Vcc+0.5	V
Operating Temperatrue	T_OPR	0 to +70	°C
Storage Temperature	T_STG	-55 to +150	°C
Power Dissipation	P_D	1.0	W
Short Circuit Output Current	I_OUT	50	mA

Description

The T14L1024N is a one-megabit density, fast static random access memory organized as 131,072 words by 8 bits. T14L1024N is designed for use in high performance memory applications such as main memory storage and high speed communication buffers. Fabricated using high performance CMOS technology, access times down to 10ns are achieved.
