T14L1024A

Features: • Fast Address Access Times : 10/12/15ns• Single 3.3V ±0.3V power supply• Low Power Consumption : 110/105/100mA• TTL I/O compatible• 2.0V data retention mode• Automatic power-down when deselected• Available packages : 32-pin 300 mil DIP/SOJ &...

product image

T14L1024A Picture
See larger image
SeekIC No. : 004510929 Detail

T14L1024A: Features: • Fast Address Access Times : 10/12/15ns• Single 3.3V ±0.3V power supply• Low Power Consumption : 110/105/100mA• TTL I/O compatible• 2.0V data retention mode&...

T14L1024A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
T14L1024A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Fast Address Access Times : 10/12/15ns
• Single 3.3V ±0.3V power supply
• Low Power Consumption : 110/105/100mA
• TTL I/O compatible
• 2.0V data retention mode
• Automatic power-down when deselected
• Available packages : 32-pin 300 mil DIP/SOJ & 32-pin SOP/TSOP-I
• Industry Standard Pin Assignment

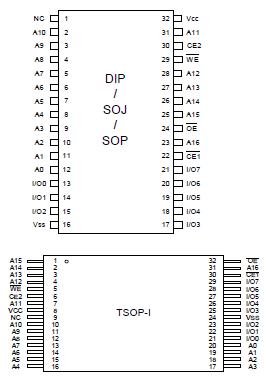

Pinout

Connection Diagram


Specifications

PARAMETER
SYM
RATING
UNIT
Power Supply Voltage
Vcc
-0.5 to 4.6
V
Input Voltage
VIN
-0.5 to Vcc+0.5
V
Output Voltage
VOUT
-0.5 to Vcc+0.5
V
Operating Temperatrue
TOPR
0 to +70
°C
Storage Temperature
TSTG
-55 to +150
°C
Power Dissipation
PD
1.0
W
Short Circuit Output Current
IOUT
50
mA



Description

The T14L1024A is a one-megabit density, fast static random access memory organized as 131,072 words by 8 bits. T14L1024A is designed for use in high performance memory applications such as main memory storage and high speed communication buffers. Fabricated using high performance CMOS technology, access times down to 10ns are achieved. Memory expansion by banking is easily accomplished using the chip enable pins CE1 and CE2. This device is packaged in a standard 32-pin 300 mil DIP/SOJ and 32-pin SOP/TSOP-I.
