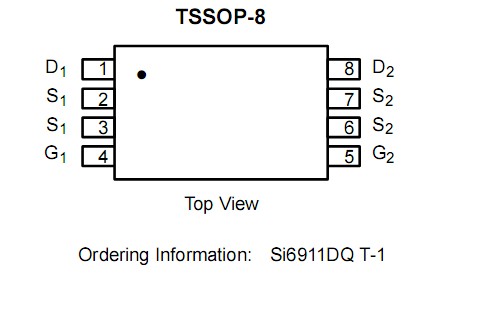

Features: TrenchFET® Power MOSFETSApplicationLoad SwitchBattery SwitchPinoutSpecifications Parameter Symbol 5 secs Steady State Unit Drain-Source Voltage VDS -12 V Gate-Source Voltage VGS ±8 Continuous Drain Current(TJ= 150 )a TA= 25 ID -5.1 ...
Si6911DQ: Features: TrenchFET® Power MOSFETSApplicationLoad SwitchBattery SwitchPinoutSpecifications Parameter Symbol 5 secs Steady State Unit Drain-Source Voltage VDS -12 V ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Parameter |
Symbol |
5 secs |
Steady State |
Unit | |
Drain-Source Voltage |
VDS |
-12 |
V | ||
Gate-Source Voltage |
VGS |
±8 | |||
Continuous Drain Current(TJ= 150 )a |
TA= 25 |
ID
|
-5.1 |
-4.3 |
A |
TA= 70 |
-4.1 |
-3.5 | |||
Pulsed Drain Current (10s Pulse Width) |
IDM |
-30 | |||
Continuous Source Current (Diode Conduction)a |
IS |
-1.0 |
-0.7 | ||
Maximum Power Dissipationa | TA= 25 |
PD |
1.14 |
0.83 |
W |
TA= 70 |
0.73 |
0.53 | |||
Operating Junction and Storage Temperature Range |
TJ, Tstg |
−55 to 150 |
