Product Details

Description



Features:

· TrenchFET® Power MOSFET


Application

· Load Switch
· PA Switch
· Charger Switch

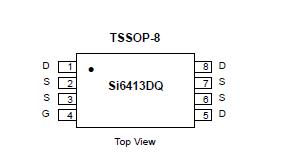

Pinout

Connection Diagram


Specifications

Parameter Symbol 10 secs Steady State Unit
Drain-Source Voltage VDS -20 V
Gate-Source Voltage VGS ±8
Continuous Drain Current (TJ = 150)a TA = 25 ID -8.8 -7.2 A
TA = 70 -7.0 -5.7
Pulsed Drain Current IDM -30
Continuous Source Current (Diode Conduction)a IS -1.35 -0.95
Maximum Power Dissipationa TA = 25 PD 1.5 1.05 W
TA = 70 1.0 0.67
Operating Junction and Storage Temperature Range TJ, Tstg -55 to 150 /W
