STV9379A

Features: · POWERAMPLIFIER·FLYBACKGENERATOR· THERMAL PROTECTION · OUTPUT CURRENT UP TO 2.6APP · FLYBACKVOLTAGE UP TO 90V (on Pin 5) · SUITABLEFORDC COUPLINGAPPLICATIONPinoutSpecifications Symbol Parameter Value Unit VS Supply Voltage (Pin 2) (see note 1) 50 V V6 ...

product image

STV9379A Picture
See larger image
SeekIC No. : 004509103 Detail

STV9379A: Features: · POWERAMPLIFIER·FLYBACKGENERATOR· THERMAL PROTECTION · OUTPUT CURRENT UP TO 2.6APP · FLYBACKVOLTAGE UP TO 90V (on Pin 5) · SUITABLEFORDC COUPLINGAPPLICATIONPinoutSpecifications Sym...

STV9379A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STV9379A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· POWERAMPLIFIER
· FLYBACKGENERATOR
· THERMAL PROTECTION
· OUTPUT CURRENT UP TO 2.6APP
· FLYBACKVOLTAGE UP TO 90V (on Pin 5)
· SUITABLEFORDC COUPLINGAPPLICATION


Pinout

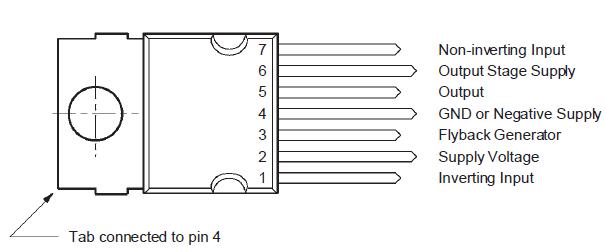

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VS

Supply Voltage (Pin 2) (see note 1)
50
V
V6
 Flyback Peak Voltage (Pin 6) (see note 1)
100
V
V1,V7
 Amplifier Input Voltage (Pins 1-7) (see note 1)
- 0.3, + VS
V
IO
 Maximum Output Peak Current (see notes 2 and 3)
1.8
A
I3
 Maximum Sink Current (first part of flyback) (t < 1ms)
1.8
A
I3
 Maximum Source Current (t < 1ms) (see note 2)
1.8
A
VESD
 ESD susceptibility : EIAJ Norm (200pF discharged through 0)
300
V
Toper
 Operating Ambient Temperature
- 20, + 75
°C
Tstg
 Storage Temperature
-40, +150
°C
Tj
 Junction Temperature
+150
°C



Description

Designed for monitors and high performance TVs,the STV9379A vertical deflection booster delivers flyback voltages close to 90V.

The STV9379A operates with supplies up to 42V and provides up to 2.6APP output current to drive the yoke.

TheSTV9379Ais offeredin HEPTAWATTpackage.
