STV9211

Features:

· 150 MHz Pixel Rate
· 2.7 ns Rise and Fall Time
· I²C Bus Controlled
· Support DC Coupling Application only
· Brightness Selection (after or before Drive)
· Grey Scale Tracking Versus Brightness
· InfraBlack Range Selection 1.3 or 1.8V
 (i.e: 26 or 36V in kit with STV95xx amplifier)
· InfraBlack Offset Selection 0.4 to 2.2V
 (i.e: 115 to 80V in kit with STV95xx amplifiers)
· OSD Mixing
· Beam Current Attenuation (ABL)
· Pedestral Clamping on Output Stage
· Possibility of Light or Dark Grey OSD Background
· OSD Contrast Control
· Input Black Level Clamping with Built-in Clamping Pulse
· 5 V to 8 V Power Supply
· Perfectly matched with the STV95xx ST Amplifier Family
· Preamplifier Control (bandwidth and stand-by)
· Amplifier Control (bandwidth and stand-by),only applicable to amplifiers with CTL pin or STDBY pins.


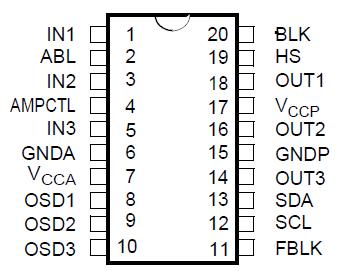

Pinout




Specifications

Symbol	Parameter	Pin	Value	Unit
VCCA	Supply Voltage on Analog VCC	7	5.5	V
VCCP	Supply Voltage on Power VCC	20	8.8	V
Vin	Voltage at any Input Pins (except Video inputs) and Input/Output Pins	-	5.5	V
VI	Voltage at Video Inputs	1, 3, 5	1.4	V
VESD	ESD susceptibility Human Body Model (100pF discharge through 1.5k)	All	2	kV
Tstg	Storage Temperature	-	-
Toper	Operating Junction Temperature	-	+150

Description

The STV9211 is an I2C Bus controlled RGB preamplifier designed for Monitor applications, able to mix the RGB signals coming from any OSD device.The usual Contrast, Brightness, Drive and Cut-Off (InfraBlack) Controls are provided.

In addition, STV9211 includes the following features:
- High resolution cut-off (InfraBlack) adjustment,
- OSD contrast,
- Bandwidth and stand-by control,
- Brightness before/after Drive Selection.

The RGB incoming signals are amplified and shaped to drive in DC coupling the video amplifier without intermediate follower stages.

One of the main advantages of ST devices STV9211 is their ability to sink and source currents.

These driving capabilities combined with an original output stage structure suppress any static current on the output pins and therefore reduce dramatically the power dissipation of the device.

Extensive integration combined with high performance and advanced features make the STV9211 one of the best choice for any CRTmonitor.

Perfectly matched with the ST video amplifiers STV95xx, they offer a complete solution for high performance and cost-optimized Video Board Application.
