STV8130D#

Features: · Input Voltage Range: 5 V to 18 V· Output Currents up to 750 mA· Fixed Precision Output 1 Voltage: 3.3 V ±2%· Adjustable Output 2 Voltage: 2.8 to 16 V· Output 1 with Reset Function· Output 2 with Disable Function by TTL Input· Short-circuit Protection at both Outputs· Thermal Protection...

product image

STV8130D# Picture
SeekIC No. : 004509067 Detail

STV8130D#: Features: · Input Voltage Range: 5 V to 18 V· Output Currents up to 750 mA· Fixed Precision Output 1 Voltage: 3.3 V ±2%· Adjustable Output 2 Voltage: 2.8 to 16 V· Output 1 with Reset Function· Outpu...

floor Price/Ceiling Price

Part Number:
STV8130D#
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/4

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Input Voltage Range: 5 V to 18 V
· Output Currents up to 750 mA
· Fixed Precision Output 1 Voltage: 3.3 V ±2%
· Adjustable Output 2 Voltage: 2.8 to 16 V
· Output 1 with Reset Function
· Output 2 with Disable Function by TTL Input
· Short-circuit Protection at both Outputs
· Thermal Protection
· Low Dropout Voltage




Pinout

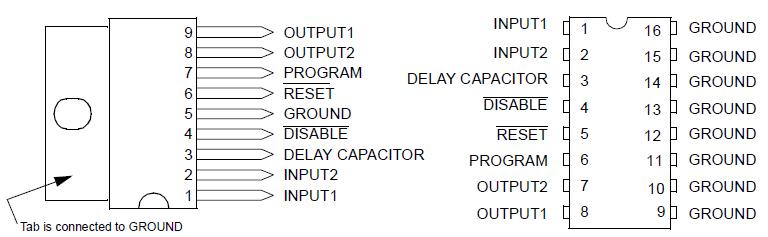

  Connection Diagram


Specifications

Symbol

Parameter

Value

Unit

VIN

DC Input Voltage at pins INPUT1 and INPUT2
20

V

VDIS

Disable Input Voltage at pin DISABLE
20

V

VRST
Output Voltage at pin RESET
20
V
IOUT1, 2
Output Currents
Internally Limited

Pt
Power Dissipation
Internally Limited

TSTG
Storage Temperature
-65 to +150

TJ

Junction Temperature
0 to +150




Description

The STV8130A# and STV8130D# are monolithic dual positive voltage regulators designed to provide a fixed precision output voltage of 3.3 V and an adjustable voltage between 2.8 and 16 V for currents up to 750 mA.

An internal reset circuit generates a reset pulse when the voltage of Output 1 drops below the regulated voltage value.

Output 2 can be disabled via the TTL input.

Short-circuit and thermal protections are included.
