STC5NF20V

MOSFET N-Ch 20 Volt 5.0 Amp

product image

STC5NF20V Picture
SeekIC No. : 00163562 Detail

STC5NF20V: MOSFET N-Ch 20 Volt 5.0 Amp

floor Price/Ceiling Price

Part Number:
STC5NF20V
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : N-Channel Drain-Source Breakdown Voltage : 20 V
Gate-Source Breakdown Voltage : +/- 12 V Continuous Drain Current : 5 A
Resistance Drain-Source RDS (on) : 0.037 Ohms Configuration : Dual Common Drain Dual Source
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : TSSOP-8 Packaging : Reel

Description

Transistor Polarity : N-Channel
Mounting Style : SMD/SMT
Packaging : Reel
Maximum Operating Temperature : + 150 C
Drain-Source Breakdown Voltage : 20 V
Gate-Source Breakdown Voltage : +/- 12 V
Continuous Drain Current : 5 A
Resistance Drain-Source RDS (on) : 0.037 Ohms
Package / Case : TSSOP-8
Configuration : Dual Common Drain Dual Source


Features:

TYPICAL RDS(on) = 0.030 @ 4.5 V
TYPICAL RDS(on) = 0.037 @ 2.7 V
ULTRA LOW THRESHOLD GATE DRIVE (2.7 V)
STANDARD OUTLINE FOR EASY AUTOMATED SURFACE MOUNT ASSEMBLY



Application

· DC MOTOR DRIVE
· DC-DC CONVERTERS
· BATTERY MANAGEMENT IN NOMADIC EQUIPMENT
· POWER MANAGEMENT IN PORTABLE/DESKTOP PCs

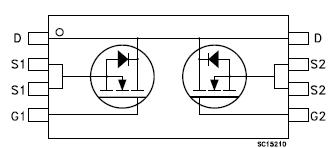

Pinout

  Connection Diagram


Specifications

Symbol Parameter
Value
Unit
VDS Collector-Source Voltage (VGS = 0 V)
20
V
VDGR Drain-gate Voltage (RGS = 20 k)

20

V
VGS Gate-Source Voltage
±12
V
ID Drain Current (continuous) at TC = 25
5
A
ID Drain Current (continuous) at TC = 100
3
A
IDM(`) Drain Current (pulsed)
20
A
Ptot Total Dissipation at TC = 25
1.5
W
(`) Pulse width limited by safe operating area.


Description

This Power MOSFET STC5NF20V is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process. The resulting transistor shows extremely high packing density for low onresistance, rugged avalanche characteristics and less critical alignment steps therefore a remarkable manufacturing reproducibility.




Parameters:

Technical/Catalog InformationSTC5NF20V
VendorSTMicroelectronics (VA)
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET Polarity2 N-Channel (Dual)
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25° C5A
Rds On (Max) @ Id, Vgs40 mOhm @ 2.5A, 4.5V
Input Capacitance (Ciss) @ Vds 460pF @ 15V
Power - Max1.5W
PackagingDigi-Reel?
Gate Charge (Qg) @ Vgs11.5nC @ 4.5V
Package / Case8-TSSOP
FET Feature*
Lead Free StatusRequest Inventory Verification
RoHS StatusRequest Inventory Verification
Other Names STC5NF20V
STC5NF20V
497 3151 6 ND
49731516ND
497-3151-6
