STC12C5410AD

Features: 1. 1T / 8051 CPU2. :5.5V - 3.4V(5V ) /PinoutSpecifications Parameter Symbol MIN MAX UNIT Storagetemperature TST -55 +125 Operating Temperature( I ) TA -40 +85 Operating Temperature( C ) TA 0 +70 DC Power Supply(5V MCU) VDD-VSS -0.3 +6.0 V DC P...

product image

STC12C5410AD Picture
See larger image
SeekIC No. : 004507297 Detail

STC12C5410AD: Features: 1. 1T / 8051 CPU2. :5.5V - 3.4V(5V ) /PinoutSpecifications Parameter Symbol MIN MAX UNIT Storagetemperature TST -55 +125 Operating Temperature( I ) TA -40 +85 ...

STC12C5410AD Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STC12C5410AD
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1. 1T / 8051 CPU
2. :5.5V - 3.4V(5V ) /

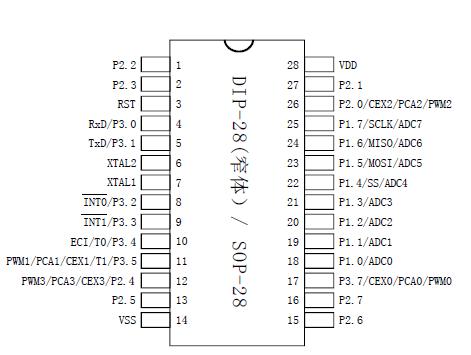

Pinout

Connection Diagram


Specifications

Parameter Symbol MIN MAX UNIT
Storagetemperature TST -55 +125
Operating Temperature( I ) TA -40 +85
Operating Temperature( C ) TA 0 +70
DC Power Supply(5V MCU) VDD-VSS -0.3 +6.0 V
DC Power Supply(3V MCU) VDD-VSS -0.3 +4.0 V
Voltage on any Pin   -0.5 +5.5 V



Description

DIP-40,PLCC-44,PQFP-44 package (RC/RD+ series PLCC, PQFP has P4 port address E8H, AD series P4 port is C0H) RC/RD+ series PLCC, PQFP has two external interrupt P4.2/INT3,P4.3/INT2. P4 port can bit addressing 5V: 5.5V~3.8V and even 3.4V(<24M); 3V: 3.6V~2.4V and even 2.0V, and it is only aim at RC/RD+ series. The real watch dog can leave out external watch dog, the default is close, and it can not close after opened.
