STC128M

Features: • Low saturation medium current application• Extremely low collector saturation voltage• Suitable for low voltage large current drivers• High DC current gain and large current capability• Low on resistance : RON=0.6(Max.) (IB=1mA)PinoutSpecifications Ch...

product image

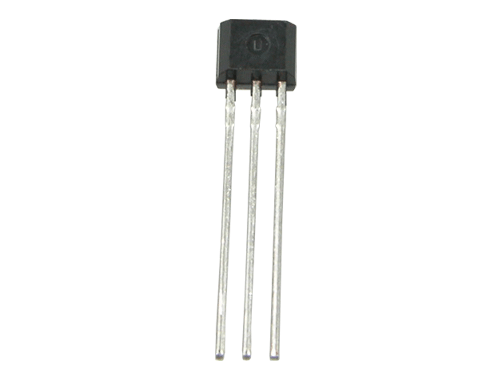

STC128M Picture
See larger image
SeekIC No. : 004507289 Detail

STC128M: Features: • Low saturation medium current application• Extremely low collector saturation voltage• Suitable for low voltage large current drivers• High DC current gain and la...

STC128M Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STC128M
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low saturation medium current application
• Extremely low collector saturation voltage
• Suitable for low voltage large current drivers
• High DC current gain and large current capability
• Low on resistance : RON=0.6(Max.) (IB=1mA)




Pinout






Specifications

Characteristic
Symbol
Ratings
Unit
Collector-Base voltage
VCBO
20
V
Collector-Emitter voltage
VCEO
15
V
Emitter-Base voltage
VEBO
6.5
V
Collector current
IC
1
A
Collector dissipation
PC
400
mW
Junction temperature
Tj
150
Storage temperature range
Tstg
-55~150





Description

Bipolar transistors, also called junction type transistors, are a kind of transistors. Unlike field-effect transistors (unipolar transistors), they are called bipolar because they have two kinds of carriers (hole, electron)
