SSM2017

Features: Excellent Noise Performance: 950 pV/Hz or 1.5 dB Noise FigureUltralow THD: < 0.01% @ G = 100 Over the Full Audio BandWide Bandwidth: 1 MHz @ G = 100High Slew Rate: 17 V/ms typUnity Gain StableTrue Differential InputsSubaudio 1/f Noise Corner8-Pin Mini-DIP with Only One External Compon...

product image

SSM2017 Picture
See larger image
SeekIC No. : 004503803 Detail

SSM2017: Features: Excellent Noise Performance: 950 pV/Hz or 1.5 dB Noise FigureUltralow THD: < 0.01% @ G = 100 Over the Full Audio BandWide Bandwidth: 1 MHz @ G = 100High Slew Rate: 17 V/ms typUnity Gain...

SSM2017 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SSM2017
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Excellent Noise Performance: 950 pV/Hz or 1.5 dB Noise Figure
Ultralow THD: < 0.01% @ G = 100 Over the Full Audio Band
Wide Bandwidth: 1 MHz @ G = 100
High Slew Rate: 17 V/ms typ
Unity Gain Stable
True Differential Inputs
Subaudio 1/f Noise Corner
8-Pin Mini-DIP with Only One External Component Required
Very Low Cost
Extended Temperature Range: 408C to +858C


Application

Audio Mix Consoles
Intercom/Paging Systems
Two-Way Radio
Sonar
Digital Audio Systems


Pinout

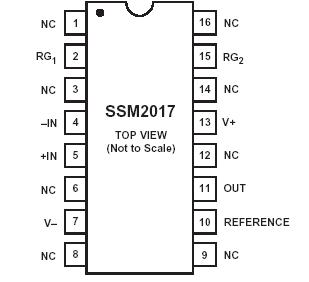

Connection Diagram


Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±22 V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . Supply Voltage
Output Short Circuit Duration . . . . . . . . . . . . . . . . . . . 10 sec
Storage Temperature Range (P, Z Packages) 65°C to +150°C
Junction Temperature (TJ) . . . . . . . . . . . . . 65°C to +150°C
Lead Temperature Range (Soldering, 60 sec) . . . . . . . . 300°C
Operating Temperature Range . . . . . . . . . . . . 40°C to +85°C
Thermal Resistance*
   8-Pin Hermetic DIP (Z): JA = 134; JC = 12 . . . . . . °C/W
   8-Pin Plastic DIP (P): JA = 96; JC = 37 . . . . . . . . . . °C/W
   16-Pin SOIC (S): JA = 92; JC = 27 . . . . . . . . . . . . . °C/W


Description

The SSM2017 is a latest generation audio preamplifier, combining SSM preamplifier design expertise with advanced processing. The result is excellent audio performance from a selfcontained 8-pin mini-DIP device, requiring only one external gain set resistor or potentiometer. The SSM2017 is further enhanced by its unity gain stability.

Key specifications include ultralow noise (1.5 dB noise figure) and THD (<0.01% at G = 100), complemented by wide bandwidth and high slew rate.

Applications for this low cost device include microphone preamplifiers and bus summing amplifiers in professional and consumer audio equipment, sonar, and other applications requiring a low noise instrumentation amplifier with high gain capability.
