SSM2005

Features: Generates 5.1-Channel Soundfield from All Stereo SourcesNo Pre-Encoding RequiredExcellent Decoding of Pre-Encoded Sources4- or 5-Speaker OperationSubwoofer OutputFull Bandwidth on All ChannelsOptimized Modes for Video and MusicExcellent Surround Image at All PositionsIndependent Left and...

product image

SSM2005 Picture
See larger image
SeekIC No. : 004503799 Detail

SSM2005: Features: Generates 5.1-Channel Soundfield from All Stereo SourcesNo Pre-Encoding RequiredExcellent Decoding of Pre-Encoded Sources4- or 5-Speaker OperationSubwoofer OutputFull Bandwidth on All Chan...

SSM2005 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SSM2005
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Generates 5.1-Channel Soundfield from All Stereo Sources
No Pre-Encoding Required
Excellent Decoding of Pre-Encoded Sources
4- or 5-Speaker Operation
Subwoofer Output
Full Bandwidth on All Channels
Optimized Modes for Video and Music
Excellent Surround Image at All Positions
Independent Left and Right Surround Steering
No Surround Channel Delay Required
Built-In White Noise Generator


Application

Home Theater Receivers
VCD/DVD Players
Auto Sound Receivers and Amplifiers
Surround Sound Decoders
Karaoke
Computer Audio Boards
Video Games


Pinout

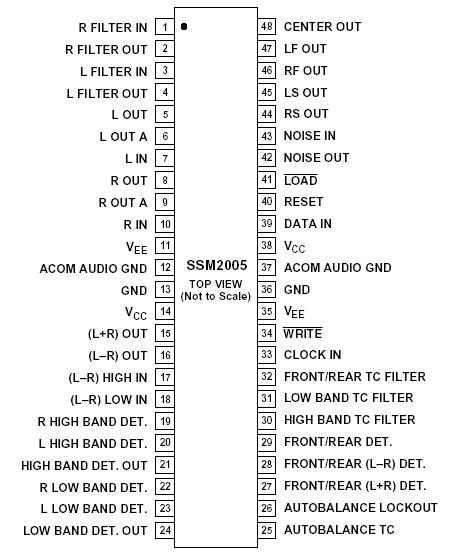

Connection Diagram


Specifications

Supply Voltage, VS . . . . . . . . . . . . . . . . . . . . . . ±8 V or +16 V
Logic Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VS
Storage Temperature Range . . . . . . . . . . . . 65°C to +150°C
Operating Temperature Range . . . . . . . . . . . 20°C to +70°C
Junction Temperature Range . . . . . . . . . . . . . . . . . . . .+150°C
Lead Temperature Range (Soldering, 60 sec) . . . . . . .+300°C


Description

The SSM2005 Circle Surround® decoder produces true 5.1-channel surround soundfield from any stereo source, including VCD, DVD, VCR, CD and FM stereo broadcasts. The SSM2005 is also compatible with encoded sources, such as Dolby ProLogic® and Circle Surround encoded movies and music. External delays and noise reduction processors are not required for the surround channels.

Circle Surround encoded stereo signals will produce a full 360º soundfield when played through the SSM2005. Recording engineers can encode sounds to any of the five speakers surrounding the listener. Left Front, Right Front, Center, and differentiated Left and Right surround channels are generated, providing a realistic ambiance effect with either 4- or 5-speaker configurations.

The SSM2005 is available from Analog Devices, subject to the License and Royalty requirements as described on the following page of the data sheet.
