SSD1303

Features: ·Support maximum 132 x 64 dot matrix panel·Area colour support with 4 Colour Selection and 64 steps per colour· Logic voltage supply: VDD = 2.4V - 3.5V·High voltage supply: VCC = 7.0V - 16.0V·Maximum segment output current: 320uA·Maximum common sink current: 45mA·Embedded 132 x 64 bit SR...

product image

SSD1303 Picture
See larger image
SeekIC No. : 004503370 Detail

SSD1303: Features: ·Support maximum 132 x 64 dot matrix panel·Area colour support with 4 Colour Selection and 64 steps per colour· Logic voltage supply: VDD = 2.4V - 3.5V·High voltage supply: VCC = 7.0V - 16...

SSD1303 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SSD1303
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Support maximum 132 x 64 dot matrix panel
· Area colour support with 4 Colour Selection and 64 steps per colour
· Logic voltage supply: VDD = 2.4V - 3.5V
· High voltage supply: VCC = 7.0V - 16.0V
· Maximum segment output current: 320uA
· Maximum common sink current: 45mA
· Embedded 132 x 64 bit SRAM display buffer
· 256-step Contrast Control on monochrome passive OLED panel
· On-Chip Oscillator
· Programmable Frame Frequency and Multiplexing Ratio
· 8-bit 6800-series Parallel Interface, 8-bit 8080-series Parallel Interface, Serial Peripheral Interface
· Row Re-mapping and Column Re-mapping
· Vertical Scrolling
· Automatic horizontal scrolling function
· Low power consumption
· Wide range of operating temperatures: -40 to 90 °C


Pinout

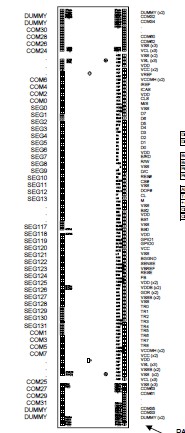

Connection Diagram


Specifications

Symbol

Parameter
Value

Unit

VDD
Supply Voltage
-0.3 to +4.0
V
VCC
0.0 to 18.0
V
VREF
0.0 to 18.0
V
VCOMH
Supply Voltage/Output voltage
0.0 to 18.0
V
-
SEG/COM output voltage
0.0 to 18.0
V
Vin
Input voltage
Vss-0.3 to Vdd+0.3
V
TA
Operating Temperature
-40 to +90
ºC
Tstg
Storage Temperature Range
-65 to +150
ºC

Maximum Ratings are those values beyond which damage to the device may occur. Functional operation should be restricted to the limits in the Electrical Characteristics tables or Pin Description.




Description

The SSD1303 is a single-chip CMOS OLED/PLED driver with controller for organic/polymer light emitting diode dot-matrix graphic display system. It consists of 132 segments, 64 commons that can support a maximum display resolution of 132x64. Besides, there are 4-colour selections to support monochrome or area colour OLED/PLED. SSD1303 is designed for Common Cathode type OLED panel.

The SSD1303 embeds with contrast control, display RAM and oscillator, which reduces the number of external components and power consumption. SSD1303 is suitable for many compact portable applications, such as mobile phone sub-display, calculator and MP3 player, etc.
