Product Details

Description



Features:

• 100K Compatible
• Inverting Outputs
• ECL and TTL Control Inputs
• Flow-Through Architecture Optimizes PCB Layout
• Center Pin VCC, VEE, and GND
  Configurations Minimize High-Speed
  Switching Noise
• Package Options Include "Small Outline"
  Packages and Standard Plastic 300-mil DIPs

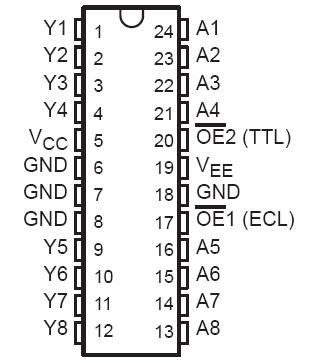

Pinout

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Supply voltage range, VEE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  8 V to 0 V
Input voltage range: TTL (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2 V to 7 V
ECL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VEE to 0 V
Voltage applied to any output in the high state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to VCC
Voltage applied to any output in the disabled or power-off state . . . . . . . . . . . . . . . . . . . . . . .  0.5 V to 5.5 V
Input current range (TTL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 mA to 5 mA
Current into any output in the low state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96 mA
Operating free-air temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to 85°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 1: The TTL input voltage ratings may be exceeded provided the input current ratings are observed.


Description

This SN100KT5540 octal ECL-to-TTL translator is designed to provide a efficient translation between a 100K ECL signal environment and a TTL signal environment. SN100KT5540 is designed specifically to improve the performance and density of ECL-to-TTL CPU/bus-oriented functions such as memory-address drivers, clock drivers, and bus-oriented receivers and transmitters.

Two output pins, OE1 and OE2, are provided. These control inputs are ANDed together with OE1 being ECL compatible and OE2 being TTL compatible. SN100KT5540offers the choice of controlling the outputs of the device from either a TTL or ECL signal environment.

The SN100KT5540 is characterized for operation from 0°C to 85°C.
