SN100KT5539

Features: • 100K Compatible• Open-Collector Outputs Drive Bus Lines or Buffer Memory Address Registers• ECL and TTL Output-Enable Inputs• Flow-Through Architecture Optimizes PCB Layout• Center-Pin VCC, VEE, and GND Configurations Minimize High-Speed Switching Noise...

product image

SN100KT5539 Picture
See larger image
SeekIC No. : 004496044 Detail

SN100KT5539: Features: • 100K Compatible• Open-Collector Outputs Drive Bus Lines or Buffer Memory Address Registers• ECL and TTL Output-Enable Inputs• Flow-Through Architecture Optimizes ...

SN100KT5539 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN100KT5539
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 100K Compatible
• Open-Collector Outputs Drive Bus Lines or
  Buffer Memory Address Registers
• ECL and TTL Output-Enable Inputs
• Flow-Through Architecture Optimizes PCB Layout
• Center-Pin VCC, VEE, and GND
  Configurations Minimize High-Speed
  Switching Noise
• Package Options Include "Small Outline"
  Packages and Standard Plastic 300-mil DIPs


Pinout

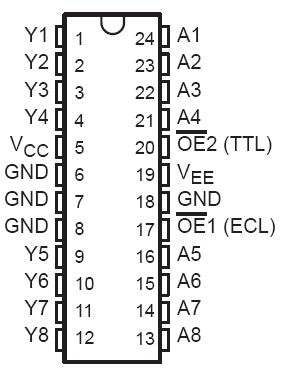

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Supply voltage range, VEE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 V to 0 V
Input voltage range: TTL (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.2 V to 7 V
ECL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .VEE to 0 V
Input current range: TTL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 mA to 5 mA
Voltage applied to any output in the high state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to VCC
Current into any output in the low state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96 mA
Operating free-air temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to 85°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C
‡ Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 1: The TTL input voltage ratings may be exceeded provided the input current ratings are observed.


Description

This SN100KT5539 octal ECL-to-TTL translator is designed to provide efficient translation between a 100K signal environment and a TTL signal environment. This device is designed specifically to improve the performance and density of ECL-to-TTL CPU/bus-oriented functions such as memory-address drivers, clock drivers, and bus-oriented receivers and transmitters while eliminating the need for three-state overlap protection.

Two pins OE1 and OE2 are provided for output-enable control. These control inputs are ANDed together with OE1 being ECL-compatible and OE2 being TTL-compatible. SN100KT5539 offers the choice of controlling the outputs of the device from either a TTL or ECL signal environment.

The SN100KT5539 is characterized for operation from 0°C to 85°C.
