SMJ27C512

PinoutSpecificationsSupply voltage range, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.6 V to 7 VSupply voltage range, VPP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.6 V to 14 VInput voltage range (see Note 1)...

product image

SMJ27C512 Picture
See larger image
SeekIC No. : 004495059 Detail

SMJ27C512: PinoutSpecificationsSupply voltage range, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.6 V to 7 VSupply voltage range, VPP . . . . . . . . . . . . . . . . ....

SMJ27C512 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SMJ27C512
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

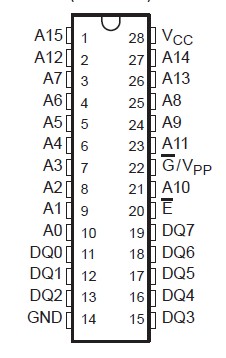

Connection Diagram




Specifications

Supply voltage range, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.6 V to 7 V
Supply voltage range, VPP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.6 V to 14 V
Input voltage range (see Note 1): All inputs except A9 . . . . . . . . . . . . . . . .. . . 0.6 V to VCC + 1 V
A9 . . . . . . . . . . . . . . . . . . . . . . . . .... . . . 0.6 V to 13.5 V
Output voltage range (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.6 V to VCC + 1 V
Operating free-air temperature range ('27C512-_ _JL, '27PC512-_ _FML)TA . .. .... . . . 0°C to 70°C
Operating free-air temperature range ('27C512-_ _JE, '27PC512-_ _FME)TA . . . . . . 40°C to 85°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C

Supply voltage range, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.6 V to 7 V
Supply voltage range, VPP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.6 V to 14 V
Input voltage range (see Note 1): All inputs except A9 . . . . . . . . . . . . . . . .. . . 0.6 V to VCC + 1 V
A9 . . . . . . . . . . . . . . . . . . . . . . . . .... . . . 0.6 V to 13.5 V
Output voltage range (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.6 V to VCC + 1 V
Operating free-air temperature range ('27C512-_ _JL, '27PC512-_ _FML)TA . .. .... . . . 0°C to 70°C
Operating free-air temperature range ('27C512-_ _JE, '27PC512-_ _FME)TA . . . . . . 40°C to 85°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C




Description

The TMS27C512 series are 65536 by 8-bit(524288-bit), ultraviolet (UV) light erasable, electrically programmable read-only memories(EPROMs).

The TMS27PC512 series are 65536 by 8-bit (524288-bit), one-time programmable (OTP) electrically programmable read-only memories(PROMs).

These SMJ27C512 devices are fabricated using power-saving CMOS technology for high speed and simple interface with MOS and bipolar circuits. All inputs (including program data inputs) can be driven by Series 74 TTL circuits without the use of external pullup resistors. Each output can drive one Series 74 TTL circuit without external resistors.

The data outputs are 3-state for connecting multiple devices to a common bus. The TMS27C512 and the TMS27PC512 are pin compatible with 28-pin 512K MOS ROMs, PROMs, and EPROMs.

The TMS27C512 EPROM is offered in a dual-in-line ceramic package (J suffix) designed for insertion in mounting hole rows on 15,2-mm (600-mil) centers. The TMS27PC512 OTP PROM is supplied in a 32-lead plastic leaded chip carrier package using 1,25-mm (50-mil) lead spacing (FM suffix).

The TMS27C512 and TMS27PC512 are offered with two choices of temperature ranges of 0°C to 70°C (JL and FML suffix) and 40°C to 85°C (JE and FME suffix). See Table 1.

All package styles conform to JEDEC standards.
